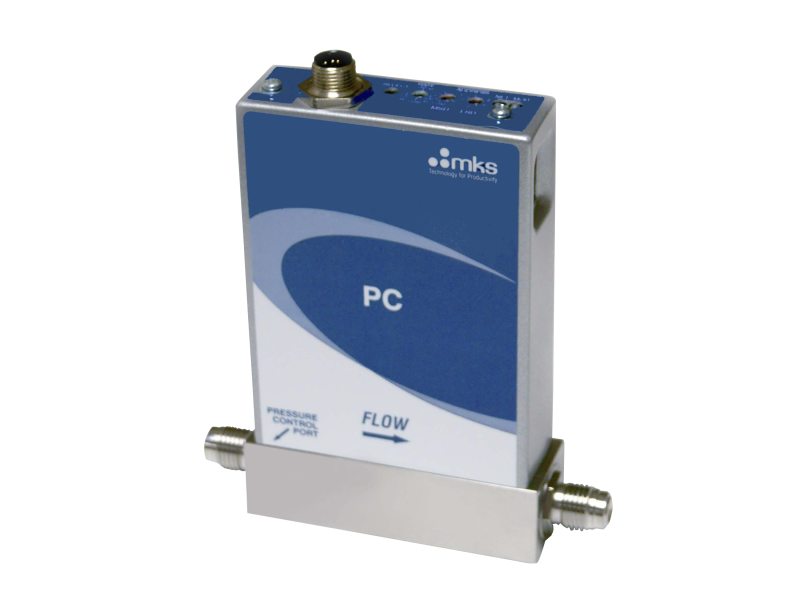

Type: GPCMA Absolute Pressure Controller with Mass Flow Meter
Pressure Range: 500 Torr, 1000 Torr, 2000 Torr, 100 psia Full Scale
Fitting Type: Swagelok® 4 VCR Male
1-1/8 inch surface mount (C-seal, W-seal)
1/4 inch Swagelok compression seal
Valve Position: Normally Closed
Valve Seat: PTFE (Teflon®)
Flow Rate: 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000, 10000, 20000, 30000, 50000 (N2 equivalent)
Pressure Readout Units: Torr, kPa, psi, mbar
Pressure Resolution: 0.1 Torr
Pressure Control Accuracy: ±1.0% of Reading >20% Full Scale
±0.2% of Full Scale <20% of Full Scale Flow (including non-linearity, hysteresis, and non-repeatability referenced to 760 mmHg and 0°C)
Transducer Over Pressure Limit: 2x Full Scale for all ranges
Maximum Differential Pressure: 45 psid
Burst Pressure: 1500 psig
Pressure Measurement Accuracy: ±0.5% of Reading
Control Range: >2 to 100% of Full Scale
Typical Response Time: <1.0 second
Operating Temperature: 10-50°C (50-to 122°F)
Storage Temperature: -20-80°C (-4-176°F)
Storage Humidity: 0 to 95% Relative Humidity, non-condensing
Flow Measurement Range: 2% to 100% of Full Scale
Flow Repeatability: ±0.3% of Reading
Flow Resolution: 0.1% of Full Scale
Flow Accuracy: ±1.0% of Reading >20% of Full Scale
±0.2% of Full Scale (>20% of Full Scale flow)
(including non-linearity, hysteresis, and non-repeatability referenced to 760 mmHg and 0°C)
Weight: <3 lbs (1.36 kg)
Compliance: CE
For specific range please check the attachment below!
