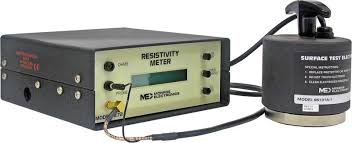

Monroe Electronics 272A Portable Surface Resistivity Resistance Meter
Manufacturer: Monroe Model: 272A - Request a Quotation
- Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Specifiations:
Resistivity Range
8 x 104 to 2.0 x 1014 Ω/squared
Resistance Range
8 x 103 to 2.0 x 1013 Ω
Accuracy
±0.1 decade thru 10E12, ±0.15 decade above 10E12 (typical);
±0.1 decade thru 10E9, ±0.15 decade thru 10E11; ±0.2 decade above 10E12 (max)
Resistivity Measuring Voltage
8.0 x 104 Ω/squared to 2.0 x 1013 Ω/squared: 10 volts
1.1 x 106 Ω/squared to 2.0 x 1014 Ω/squared: 100 volts
Resistance Measuring Voltage
1.1 x 105 Ω to 2.0 x 1013 Ω: 100 volts
8.0 x 103 Ω to 2.0 x 1012 Ω: 10 volts
Display Type
16-char. alphanumeric LCD
Information Shown
Operating mode, measured Ω or Ω/squared in log or scientific notation, applied voltage, low battery indication
Power
Rechargeable battery with 100, 120, or 230 VAC adapter/charger supplied
Battery Life
Up to 8 hours continuous operation per charge
Electrode Type
Monroe Model 96101A-1 Guarded-ring-type designed to ASTM D-257
Weight
2.3 kg
Outer Electrode Ring Inside Diameter
5.7 cm
Outer Electrode Ring Thickness
0.32 cm
Inner Electrode Disc Diameter
3.0 cm
Electrode/Meter Cable Length
0.9 m
Meter Dimensions
6.4 x 15.2 x 15.2 cm
Accessories Included
Manual on CD, Surface test electrode, surface to ground adapter, specimen plate, power supply, carrying case, connecting cable
Optional Probes
Model SE0032 Mini Guard Ring Probe
Model 96163 Point-to-Point Probe
The model 272A provides rapid, accurate, and repeatable measurements of surface resistivity, volume resistivity, or resistance to ground in one versatile instrument. Use it to measure the resistive properties of static control products such as static dissipative packaging, flooring, or work surfaces over the range of 8 x 10E3 to 2 x 10E13 ohms or 8 x 10E4 to 2 x 10E14 ohms per square.
Model 272A includes a concentric ring probe and support base conforming to ASTM D-257, ANSI/ESD STM11.11, and ANSI/ESD STM11.2 for making surface and volume resistivity measurements. An adaptor is included for resistance to ground measurements.
|
|
PICTURES [click on image for larger view] | |
|
|
|
|
|
|
|
|
DOCUMENTS | |
Download Data Sheet › | |
Download Manual › | |
Download Application Note APNE-0002 › Practical Volume Resistivity Measurements with Monroe Model 272A Portable Surface Resistivity/Resistance Meter |
|
Download Application Note APNE-0004 › Surface Resistivity Measurements of Narrow Tape Samples Using Model 272ADiscusses a technique for measuring surface resistivity of tapes or ribbons. FormerlyES-44 |
|
PROBES and ACCESSORIES | |
MODEL | DESCRIPTION |
272RV-6 | Model 272A Reference Test Fixtures 10^6 ohm/square: Download Data Sheet › |
272RV-8 | Model 272A Reference Test Fixtures 10^8 ohm/square: Download Data Sheet › |
272RV-11 | Model 272A Reference Test Fixtures 10^11 ohm/square: Download Data Sheet › |
272RVK | Model 272A Reference Test Fixtures 10^6 & 10^8 & 10^11 ohm/square Kit: Download Data Sheet › |
433 | Replacement Battery Charger for Model 272A |
96101A-1 | Surface Test Electrode for Model 272A |
SE0032 | 0.44” dia. Mini Guard Electrode for Model 272A: Download Data Sheet › |
96163 | Point to Point Probe: Download Data Sheet › |
