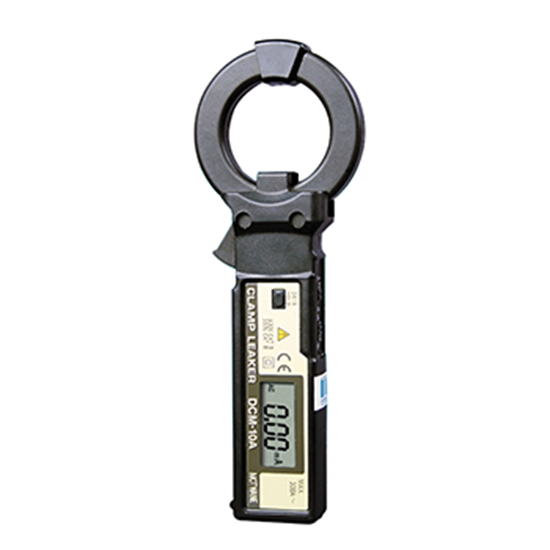

MOTWANE DCM 10A Clamp Meter (AC 300A)
Manufacturer: MOTWANE Model: DCM 10A Origin: India Guarantee: 12 Month - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Manufacturer: MOTWANE
Model: DCM 10A
Origin: India
Warranty: 12 months
Measuring Method: Dual intergration mode
Measuring Fuction: Leakage current and load current
Display: 3½ digit L.C.D max, reading of 3200
Range: 0-30 mA/ 300mA; 0.01/0.1mA; ±1.2% rdg ± 5dgt
30A/ 300A; 0.01/0.1A; 0-200A; ±1.2% rdg ± 5dgt
30A/ 300A; 0.01/0.1A; 200-250A; ±3.0% rdg ± 5dgt
30A/ 300A; 0.01/0.1A; 250-300A; ±5.0% rdg ± 5dgt
Jaw Opening Capability: 40mm dia
Maximum Indication: 3200 counts
Low Battery Indication: 2.5V-2.7V
Over load indication: "OL" mark on LCD
Data Hold Indication: "DH" mark on LCD
Sampling Time: Approx 2 times/sec ( Digital Display); Approx 12 times/sec( bargraph display)
Auto Power Off: The Meter is set to poer off mode approx 10mins after the power switch on
Limitation of Circuit: Less than AC 600V
Withstanding Voltage: AC 3700V/1 min max
Operating Temperature: 0° C to 40° C < 80% RH (noncondensing)
Storage Temperature: -10° C to 60° C < 70% RH (noncondensing)
Power Supply: 2x1.5V button cells LR44 or SR44
Power Consumption: approx 5mw
Battery Life: approx 50hours( LR44)
Size: 64(W)x 176(H)x 23(D)mm approz
Weight: approx 125g
