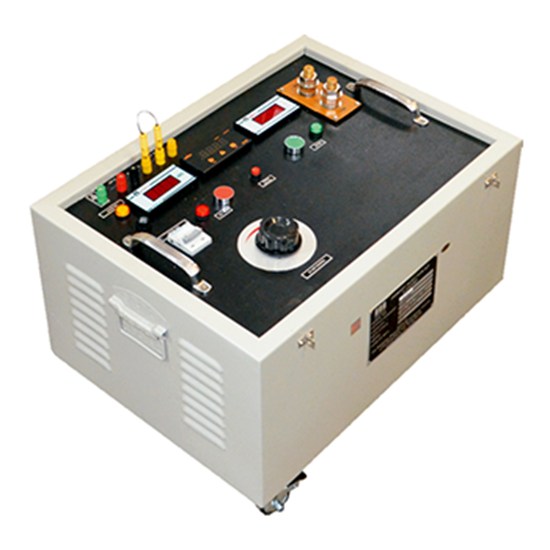

Manufacturer: MOTWANE
Model: MOT-RTS20
Origin: India
Warranty: 12 months
Current: 0-20A
Selectable Current Ranges: 0-1-5-10-20
Burden: 200VA
O/P DC Voltage: 0-250V DC
O/P AC Voltage: 0-250V AC
Voltage Accuracy: +/- 0.5% of rdg
Voltage Resolution: 1V
Current Accuracy: +/- 0.5% of rdg
Current Resolution: 0.1% of full scale
Timer range: 0.0001-9999Seconds Auto Ranging ,Timer with trip circuit
Timer Accuracy: 0.05%+1 Counts
Duty Cycle: 30Min ON,10Min OFF
Indication: Bright LED for Power ON & Test ON
Mains Supply: 230 Vac ,50Hz ±10%, 1 Phase
Operating Temperature: 0-55°C ,5-90% RH Non Condensing
Output Current leads: PVC insulated 10 sq. mm cu
cable 2X1.5mtr lug at both ends
Standard Accessories:
Lead sets
a) PVC insulated output current lead set
b) PVC insulated 2.5 Sq.mm Cu cable 2x4 mtrs one side banana plug & other side small crocodile clip.
c) PVC Insulated 1.5 Sq.mm Cu Cable 4 x 4 mtrs one side banana plug & other side small crocodile clip.
d) PVC Insulated 1.5 Sq.mm 3 core Cu cable for input supply
Instruction manual
Calibration report
Warranty certificate
