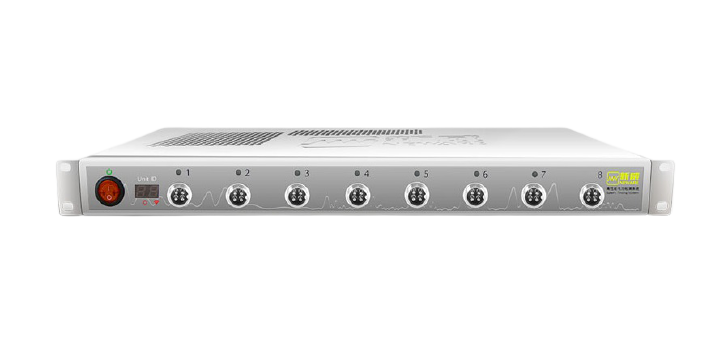

NEWARE CT-4008-5V20mA-164 Advance Battery Testing System (10uA~20mA, 25mV~5V)

Input: 25W,110V±10% or 220V±10%, Single Phase, 50Hz/60Hz

Output:

      Voltage: 25mV~5V, ±2.5mV

      Current: Range 1: 2mA ~ 20mA, ±10uA; Range 2: 10uA ~ 2mA , ±1uA

Resolution: AD 16bit, DA 16bit

Data Acquisition:

      Frequency: 10Hz Max

      Mode:

            Min Time Interval: 100ms

            Min Voltage Interval: 10mV

            Min Current Interval: Range 1: 40uA; Range 2: 4uA

Response Time 1msec, 10%-90% Current Range

Operation Mode:

      Charge: Constant Current, Constant Voltage, Constant Resistance

      Discharge: Constant Current, Constant Power, Constant Resistance

      Simulation: Constant Current, Constant Power

      End Conditions: Voltage, Current, Time, Capacity, Energy, -δV

Channel Control: Independent

Step Editor:

      Cycles: Max 65535

      Steps: Max 255

      Loops: Max 3 nested loops

      Step Time Format: 00:00:00.000 (mm:hh:ss.ms)

Input Impedance: ≥10GΩ

Noise: <75dB

Environment:

      Operating: 15℃~40℃, ≤70% RH, No Condensation

      Storage: -10℃~50℃, ≤80% RH, No Condensation

Battery Holders Options: Coin Cell Holders, Alligator Clips, Ring Terminal

Dimensions: 443*330*48 (W*D*H mm)
