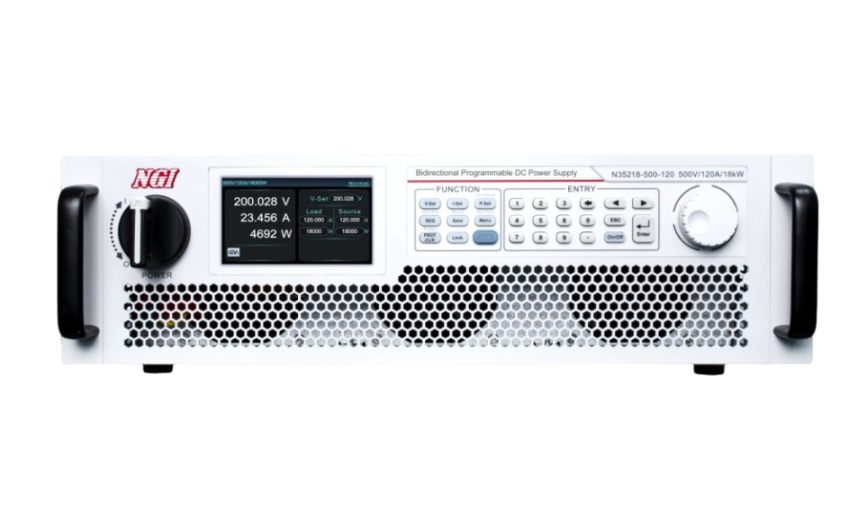

NGI N35200 Bidirectional DC Power Supply (0～500V, -80A～80A, -12kW～+12kW)

Voltage: 0～500V

Current: -80A～80A

Resistance: 0.05Ω～1.25kΩ

Power: -12kW～+12kW

Constant Voltage Mode

Range: 0～500V

Setting Resolution: 10mV

Setting Accuracy (23±5℃):0.02%+0.02%F.S.

Readback Resolution: 10mV

Readback Accuracy (23±5℃): 0.02%+0.02%F.S.

Voltage Reple（Vpp）: ≤350mV

Voltage Riple（Vrms）: ≤40mV

Temperature Coefficient:≤50ppm/℃

Constant Current Mode

Range: -80A～80A

Setting Resolution: 1mA

Readback Accuracy (23±5℃):0.1%+0.1%F.S.

Readback Resolution: 1mA

Readback Accuracy(23±5℃): 0.1%+0.1%F.S.

Temperature Coefficient: ≤100ppm/℃

Constant Power Mode

Range: -6kW～+6kW

Setting Resolution: 1W

Readback Accuracy (23±5℃): 0.5%F.S.

Readback Resolution: 1W

Readback Accuracy(23±5℃):0.5%F.S.

Constant Resistance Mode

Range: 0.05Ω～1.25kΩ

Setting Resolution: 0.001Ω

Readback Accuracy (23±5℃): Vin/Rset*0.01%+0.2% I.F.S

Line Regulation

Voltage: ≤0.01%F.S.

Current: ≤0.05%F.S.

Load Regulation

Voltage: ≤0.02%F.S.

Current: ≤0.05%F.S

AC Input

Input: Three phase , Please refer to the voltage mark at the rear panel.

Efficiency: 93%（typical）

Power Factor: 0.99（typical）

Operating Environment

Temp.specification: Operating Temp.：0℃~ 40℃；Storage Temp.：-20℃~ 70℃

Environment Altitude:＜2000m；Relative Humidity：5% ~ 90%（non condensing）；Air Pressure：80kPa ~110kPa

Dimension（mm:） 132.5(H)*482.0(W)*752(D), include the protective cover

Net weight: ≈18kg
