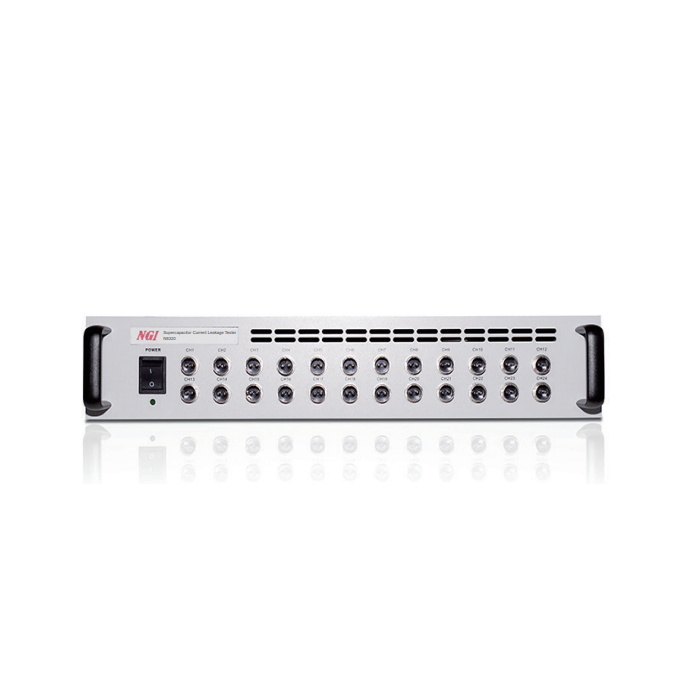

NGI N8320 Supercapacitor Current Leakage Tester (60mA)
Manufacturer: NGI Model: N8320 Origin: China - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Current Limit Resistance: 1Ω/ 10Ω/ 100Ω
Max. Charging Current: 1A/ 600mA/ 60mA
Current Leakage Readback Resolution: 1μA/ 100nA/ 10nA
Current Leakage Readback Accuracy: 0.05%+0.05%F.S.
Current Readback Temperature Coefficient: <50ppm/℃
Charging Voltage Range: 0~6V
Voltage Setting Resolution: 16 bits
Voltage Setting Accuracy: 0.01%+0.01%F.S
Voltage Setting Temperature Coefficient: 0.5ppm/℃
Max. Output Power: 6W
Voltage Readback Range: 0~6V
Voltage Readback Resolution : 12 bits
Voltage Readback Accuracy: 0.1%+0.1%F.S
Channels: 24CH
Interface: LAN/RS485
Data Export Format: Excel/JPG
Operating Temperature: -10℃-40℃
Relative Humidity: 5%-90%
Atmospheric Pressure: 80-110kPa
AC Input: 220V AC±10%, frequency 47Hz-63Hz(Please refer to the nameplate.)
Dimension: 2U, 88(H)*482.6(W)*553.3(D)mm
Net Weight: Approx. 10kg
