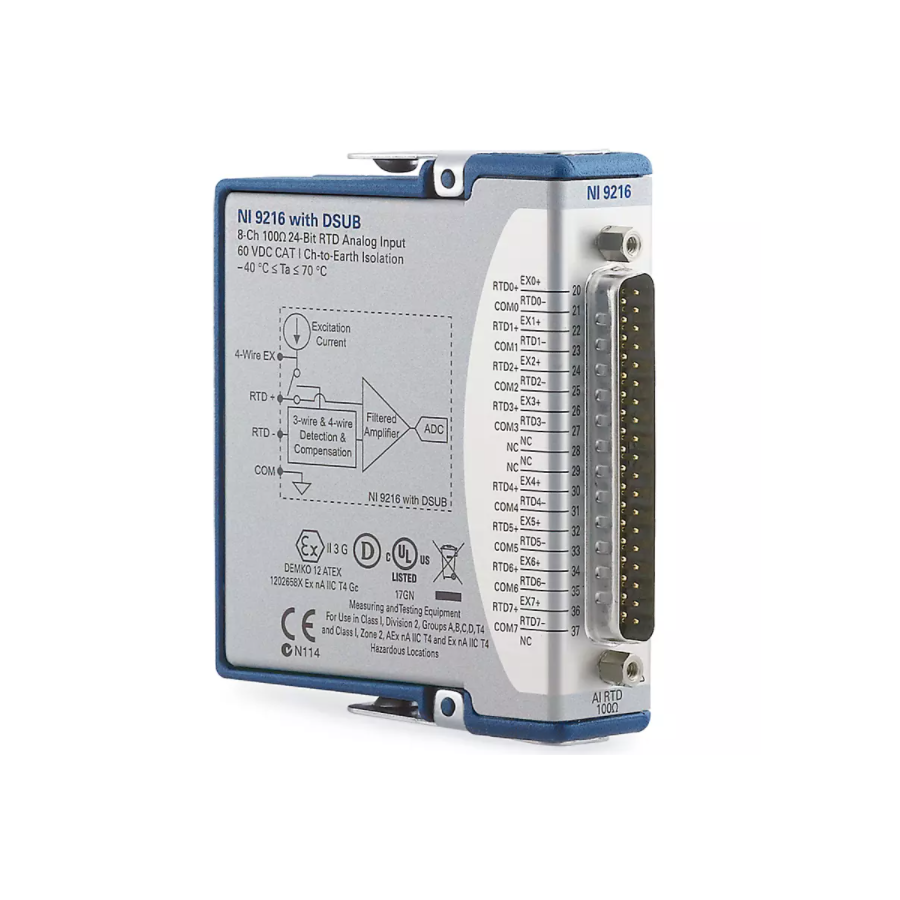

NI NI-9216 C Series Temperature Input Module (Conformal Coated, 8-Channel, 400 S/s, D-SUB)
Manufacturer: NI Model: NI-9216 P/N: 783863-02 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Maximum Number of Differential Analog Input Channels: 8
Maximum Sample Rate: 400 S/s
Analog Input Isolation: 60 Vrms Ch-Earth Ground Isolation
Example of Measurement Accuracy: 0.15 °C
Supported Sensors: PT100 RTD
Front Connection Type: D-SUB
Conformal Coated: Yes
Enclosed: Yes
Supported Hardware Platform: CompactDAQ CompactRIO
Kit Contents
• NI 9216
• NI 9216 Getting Started Guide
Accessories
• NI 9974 Spring-Terminal Block (with Spring-Terminal)
Takes measurements from thermocouples and resistance temperature detectors (RTDs) for CompactDAQ or CompactRIO systems.
The C Series Temperature Input Module features up to 16 channels of temperature input from either thermocouples or RTDS. This module can include anti-aliasing filters, open-thermocouple detection, and cold-junction compensation. Additionally, the module also feature isolation for safety, noise immunity, and high common-mode voltage range.The C Series Temperature Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
