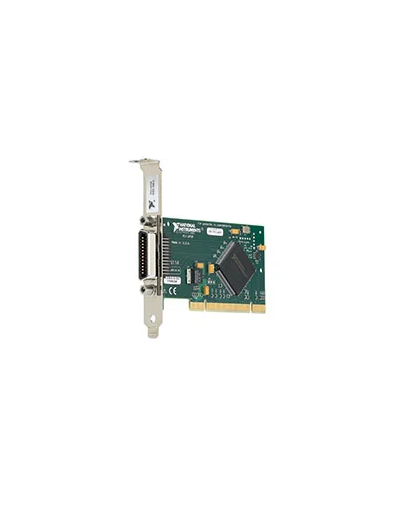

NI 778032-01 GPIB Controller for PCI (PCI-GPIB, IEEE 488, PCI, NI-488.2, Windows)

Maximum IEEE 488 Bus Transfer Rates

IEEE 488 interlocked handshake: 1.5 MB/s

IEEE 488 noninterlocked

(HS488) handshake: 7.7 MB/s

(actual rates depend on system configuration and instrument capabilities)

GPIB Analyzer Performance

Sampling rate: 20 MHz

Timestamp resolution: 50 ns

Ethernet Performance

10BASE-T : 10 Mb/s, full-duplex

100BASE-TX : 100 Mb/s, full-duplex

1000BASE-T : 1000 Mb/s, full-duplex

I/O Connectors

GPIB: IEEE 488 standard 24-pin

Ethernet: RJ45

Operating Environment

Ambient temperature: 0 to 55 ˚C

Relative humidity: 10 to 90%, noncondensing

(tested in accordance with IEC-60068-2-1, IEC-60068-2-2, and IEC-60068-2-56)

Storage Environment

Ambient temperature: -20 to 70 ˚C

Relative humidity: 5 to 95%, noncondensing (tested in accordance with IEC-60068-2-1, IEC-60068-2-2, and IEC-60068-2-56)

Datasheet
