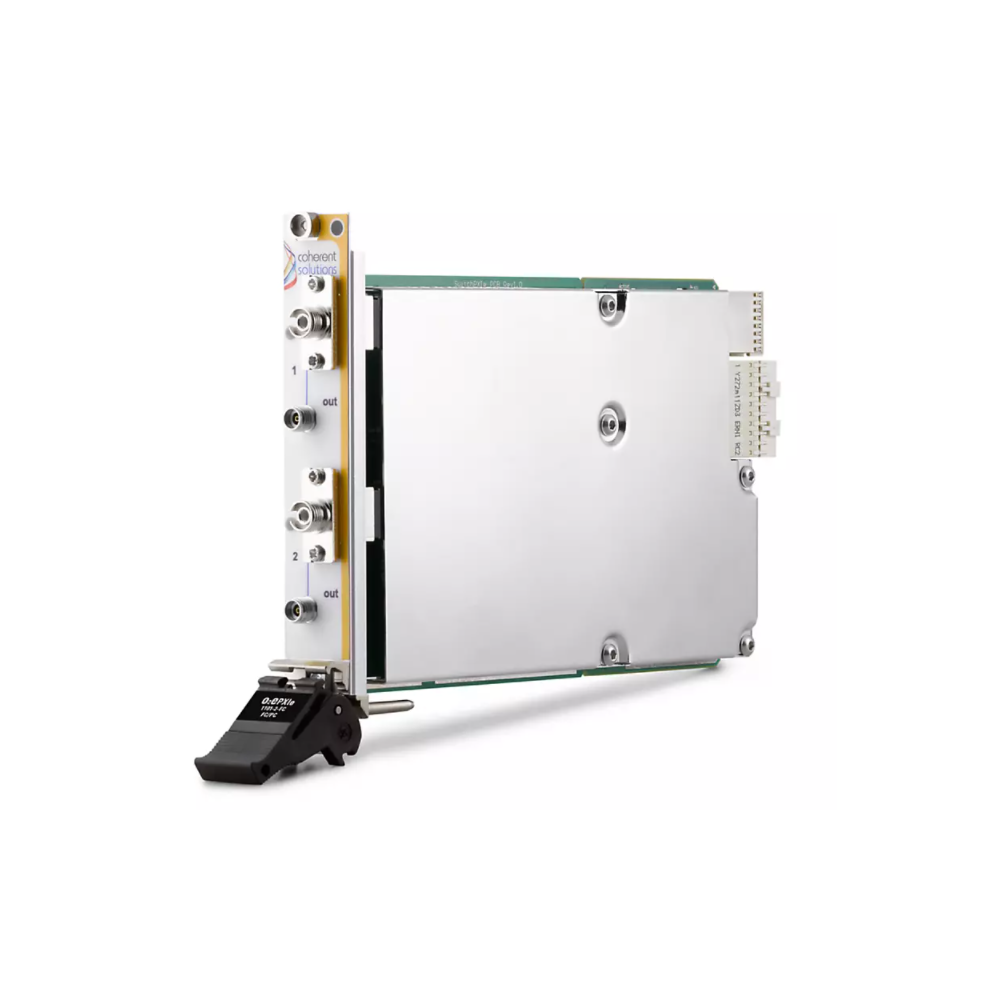

O2E 25 GHz 2 Ch AC Singlemode FC Connector
Bus Connection: PXIe
PXI: slots 1
Dimensions (HxWxD): 130 mm x 20mm x 215 mm (5.1” x 0.8” x 8.5”)
Weight: ~ 1 kg (~2.2 lbs)
Operating temperature range: 5 °C to 45 °C (41 °F to 113 °F)
Storage temperature range: -40 °C to 70 °C (-40 °F to 158 °F)
Bandwidth
25 GHz (typ)
24 GHz (min)
Wavelength: 950 to 1650 nm
Calibrated wavelength: 1310, 1490, 1550
Optical connector type: FC/PC, FC/APC, SC/APC, SC/PC
Number of channels: 1 or 2
RF coupling: AC
RF connector: K (2.92 mm)
RF impedance: 50 ohms
Fiber: SMF-28
Damage level peak power: 4 dBm
Optical return loss: 30 dB at 1550 nm
PDL at 1550 nm: 0.25 dB (max) at 1550 nm
Conversion gain: 900 V/W (typ) at 1550 nm
Low frequency cutoff: < 100 KHz
Noise equivalent power: 0.18 fW/Hz
Average power reading: Yes
Converts broadband light signals to electricity for optical test applications.
The PXI Optical-to-Electrical Converter provides high-bandwidth optical-to-electrical (OE) functionality. You can choose from both AC- and DC-coupled models with up to two channels in a variety of conversion gain and operating wavelength ranges. The PXI Optical to Electrical Converter is ideal for reliable testing in manufacturing or research and development environments.
