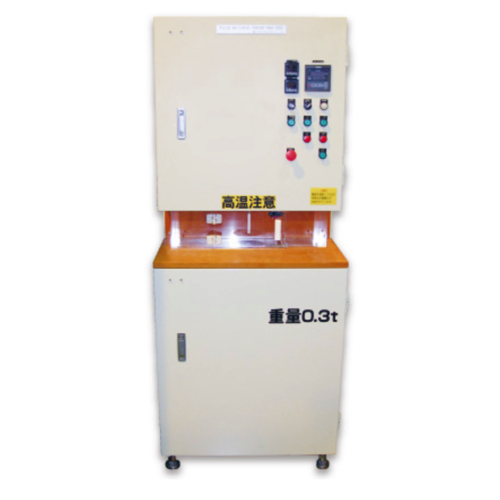

Nihon Denji Sokki (NDK) Pulse type PBH-1000 Curve Tracer (9.57MA/m (120kOe); 1.196MA/m/s (15MOe/s))

Power input: Single phase AC200±20V 50/60Hz 60A

Maximum Applied Magnetic Field: 9.57MA/m (120kOe)

Magnetic field sweep speed(*1): 1.196MA/m/s (15MOe/s); Pulse zero to maximum 8m sec

Excitation power supply: Pulse 10kA (2500V, 1500μF)

Measurement time (*1): Approx. 1-3 minutes

Magnet shape (*2):

Cylinder: Diameter 3 to 10mm, Height 3 to 20mm approx.

Prism: Width, depth: 3 to 10 mm each, height: 3 to 20 mm approx.

Repeatability (*3): J: ±1%, H: 1%

Temperature application: From room temperature to 200°C

Main measurement items: Residual flux density: Br, Saturation magnetic polarization: Js, Coercive force: HcB, HcJ, Maximum energy product: BHmax, Orientation: Br/Js, Angular ratio: Hk/HcJ

External dimensions [W×D×H]: 1000×1650×1650mm

Mass: Approx. 1200kg

*1 When all quadrants are measured and maximum magnetic field is set.

*2 Standard shape: Diameter 10mm, height 7mm, cylindrical

*3 Calculated using Br and HcJ for the same sample and under the same measurement conditions. Varies depending on sample method and characteristics.
