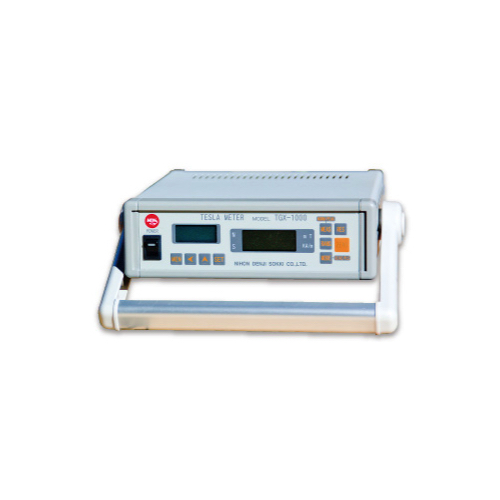

Nihon Denji Sokki (NDK) TGX-1000 Flux Density Meter (DC, AC (RMS/PEAK); 99.99mT, 999.9mT, 9.999T)

Measuring item: DC, AC (RMS/PEAK)

Display Scope: 0.01mT~9.999T

Measuring Range: 99.99mT, 999.9mT, 9.999T

Frequency Range: DC, AC:50/60Hz

Resolution: 0.01mT (0.1 Gauss)

Accuracy:

DC: ±1%/reading + ±0.5％/FS

AC: ±2%/reading + ±0.5％/FS

Main Functions: Peakhold, Comparator

Probe model:

Transverse: 50102, 50103, 50105

Axial: 50112, 50113

Operating atmosphere Temp.: 0 to 50℃

Analog Output: ±4V/FS

Communication Interface: USB

Power Requirements: AC85-250V, 0.3A

Dimensions [W×D×H]: 210×230×60mm

Weight (kg): Approx. 3
