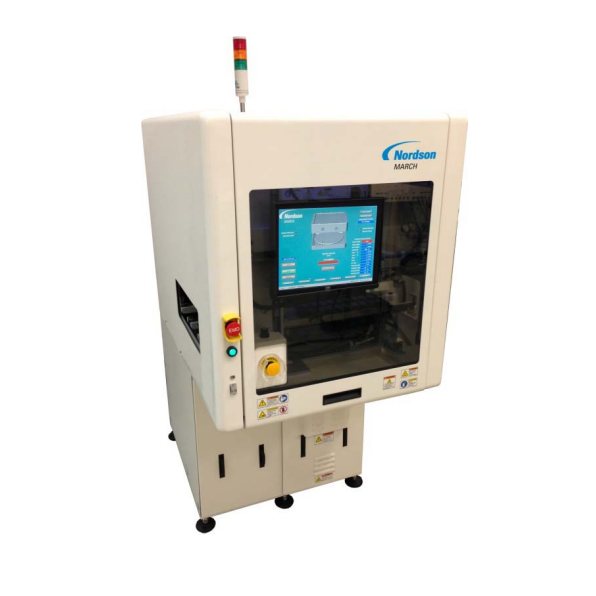

Nordson FlexTRAK-2MB Plasma treatment systems (5.5 liters)

Enclosure Dimensions: W x D x H – Footprint: 800W x 1530D x 1596H; 1950H mm with Light Tower (31.5W x 60.2D x 62.8H; 76.8H in. with Light Tower)

Net Weight: 590 kg (1300 lbs.)

Equipment Clearance: Front, Right, Left – 607 mm (24 in.), Back – 254 mm (10 in)

Chamber Maximum Volume: 5.5 liters (338 in³)

Electrodes:

Variable Electrode Configurations: Power-Ground, Ground-Power, Power-Power

Working Area: 305W x 305D mm (12W x 12D in.)

RF Power:

Standard Wattage: 600 W

Frequency: 13.56 MHz

Gas Control:

Available Flow Volumes: 50, 100, or 250 sccm

Maximum Number of MFCs: 3

Control System and Interface

Software Control: EPC with PC-based touchscreen interface

Remote Interface: SMEMA, SECS/GEM

Vacuum Pump: Standard Purged Dry Pump: 16 cfm

N2 Purged Pump Flow: 2 slm
