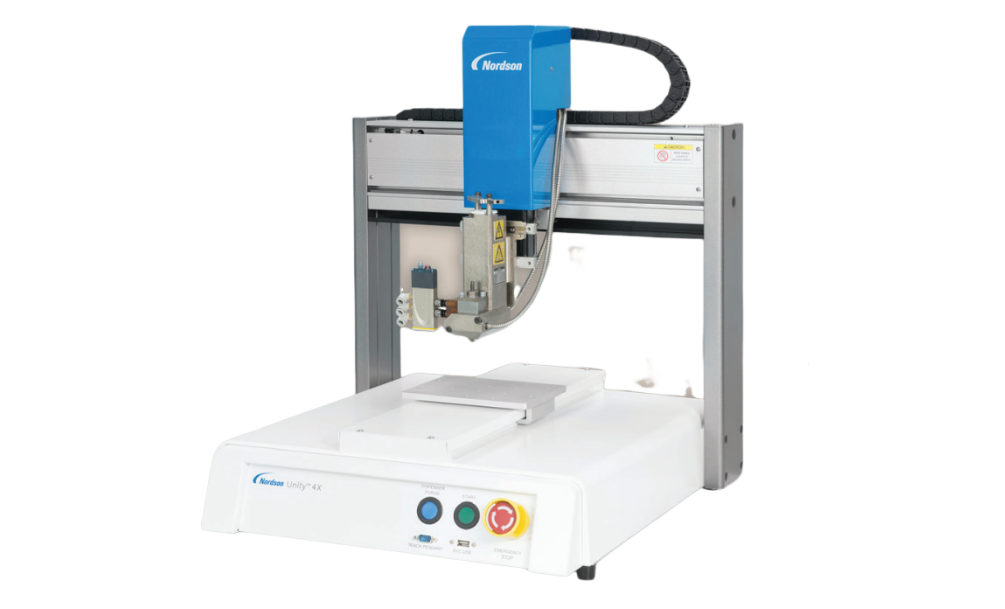

Nordson Unity PURJet 30 Dispensing systems (60-120psi; 15 scfm)

Specifications

- Unity controller

Operating air pressure: 4-8 bar (60-120psi)

Weight: 7.2 kg (15.9 lb)

Dimensions (W x D x H): 264 mm (W) x 152 mm (D) x 264 mm (H)

Weight: 1.6 kg (3.4 lb)

Adhesive viscosity: Varies depending on nozzle size and flow rate

Solenoid valve air flow: 15 scfm minimum

Electrical Specifications

- Unity controller

Supply voltage: 200-240 VAC, 1 phase, 50/60 Hz, 290 W

Heating zones: One (applicator), 1200 W maximum

Control temperature range: 51–232 °C (125–450 °F)

Control temperature stability: 0.5 °C (1°F)

Supply voltage: 200-240 VAC, 1 phase, 50/60 Hz, 250 W

(supplied from controller)

Sensor type: 120 ohm nickel or 100 ohm platinum
