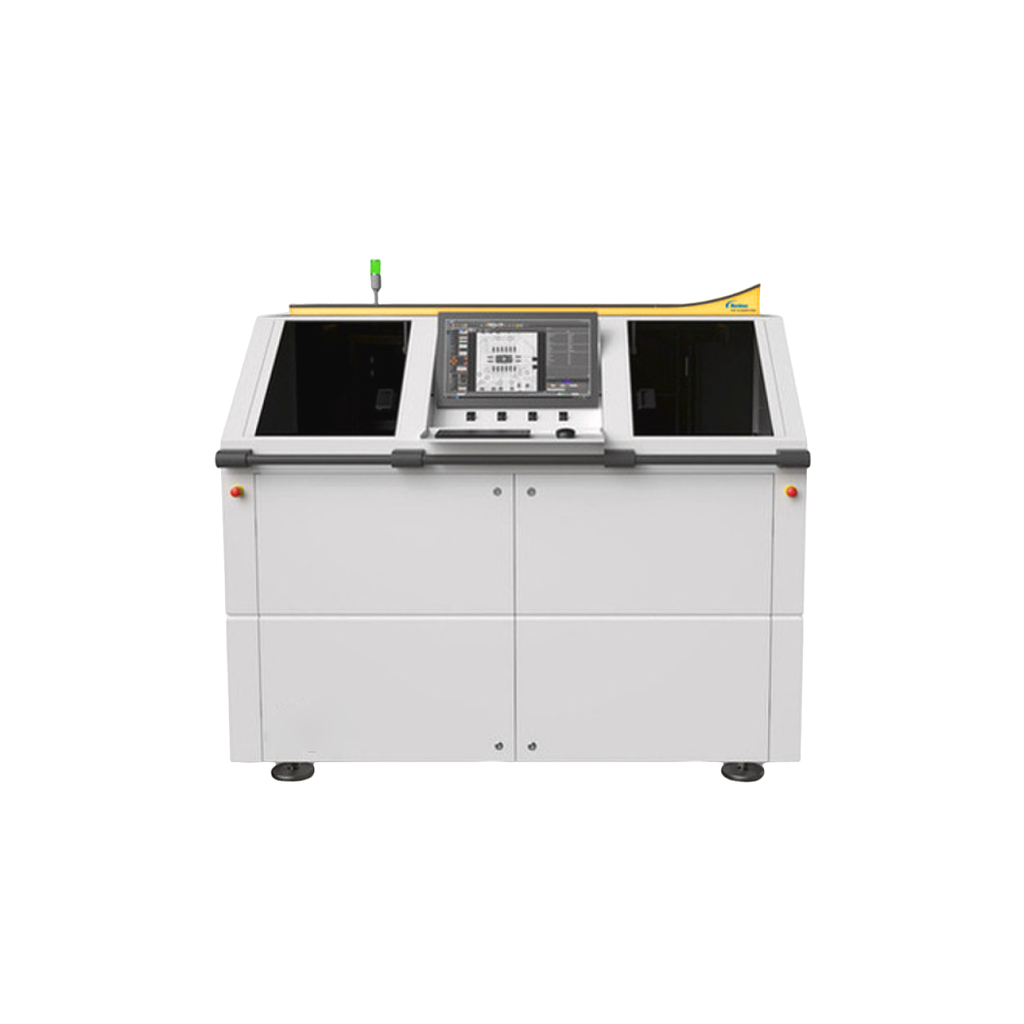

Facilities
Dimensions: 1630 mm (H) x 1800 mm (W) x 1575 mm (D)
Adjustable conveyor height (SMEMA): 950 mm
Weight: 2800 kg
Safe Operating Temperature: 15° - 28 °C optimal 20° - 25° C
Power Consumption: max. 6 kW
Line Voltage: 400 VAC, 50/60 Hz 3 phase, 16 A/208 VAC, 50/60 Hz 3 phase, 25 A
Air: 5-7 Bar, < 2 l/min, filtered (30µ), dry, oil free
X-ray Image Chain
X-ray Source (sealed tube)
Energy: SMT-Setup; 130 kV/40 W
Grey resolution: 14 Bit
Detector Types: CMOS Flatpanel Detector 50 µm pixel size (6 MPix)
Inspection features
Max. sample size: 460 mm x 360 mm
Max. inspection area: 460 mm x 360 mm
Min. sample size: 80 mm x 80 mm
Sample thickness: 0.8-10 mm
Max. sample weight: 5 kg
Angle shot capability: up to 50 deg
Resolution: 3-4 µm/pix
Motion System
Multiple axes programmable motion system
Installed axes
x,y (linear drives): sample table
z (servo): magnification
u,v (linear drives): detector movement
Conveyor setup
Inline set-up: automatic width adjustment
Assembly clearance
Topside (incl. sample thickness): 35/50 mm
Bottom side (excl. sample thickness): 35/20 mm
Min. edge clearance for clamping: 3 mm
Inspection speed
X2 Transmission: (2D) + SFT™
Transmission (X2, X2.5, X3): up to 6 views/s
Off-Axis (X2.5, X3): up to 5 views/s
3D SART (X3): up to 1s/FoV
Dynamic Planar CT (X3): up to 3sec/ROI
