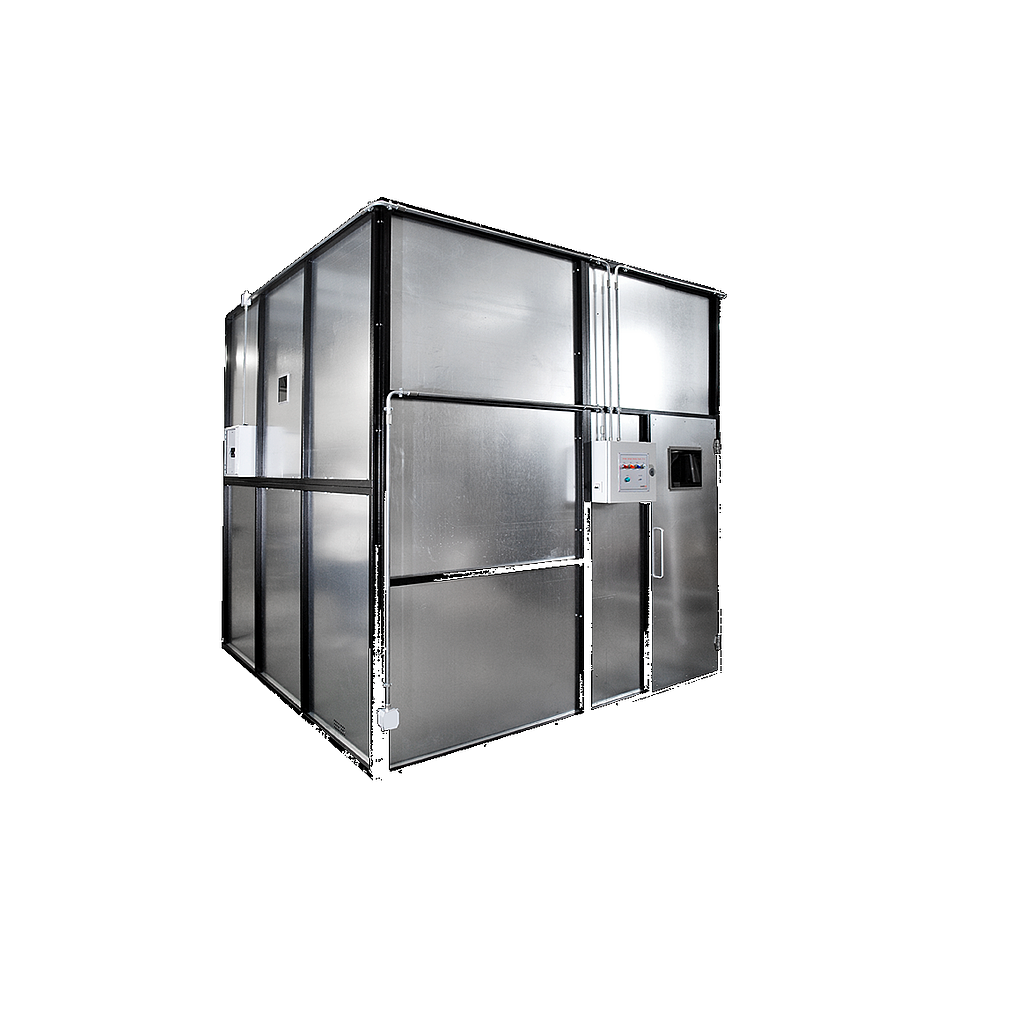

The test chamber panels are easy to assemble, prepared with special fastening systems and equipped with the following accessories:
Glass window with darkening curtain, gaskets and locks on the door.
Two small tempered neutral glass windows (dim. 200x200mm) for opacimeter light beam passage.
Arc of a circle screen (1500x1000mm).
Stainless Steel Tray for combustible solution.
Stainless Steel Frames for clamping cables under testing.
n. 2 Thermocouples K type
Smoke aspirator system at test conclusion, consisting of a propeller fan of 1500 m3/h airflow with 0.5 CV - 6 poles motor, stop valve.
General:
• Dimensions: 300 x 300 x 300 h (cm), main system
• Net weight: kg 1600
• Gross weight: kg 2000 (wood cases)
• Power supply 230 V 50Hz single phase
Accessories:
• Portable Electronic Thermo anemometer to verify the fan throughput.
• Light meter - resolution 1 lux to verify the luminous flux not less than 2000 lumens
