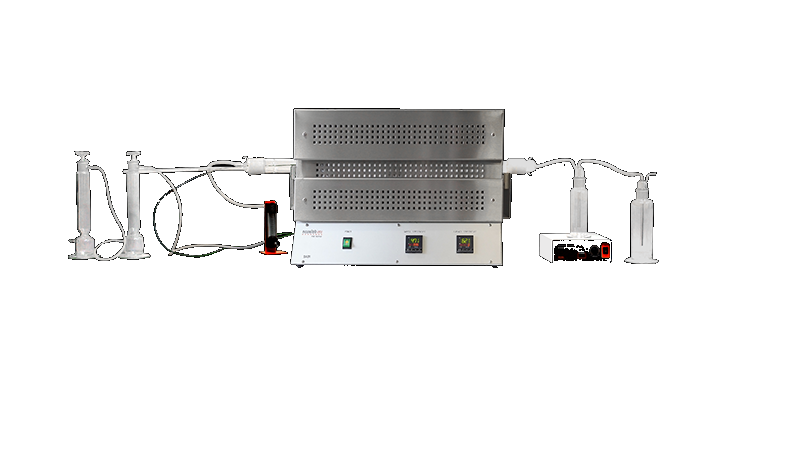

2200 W thermodielectric refractory tubular furnace with 60 mm diameter, 600 mm long tube, silica fiber insulation and safety structure, maximum temperature 1000 °C
Transparent quartz combustion tube with glass conical joints at each end, length 900 mm, diameter 40 mm (17101021)
Conical cover with joint for pure air inlet and airtight spherical joint for inserting a thermocouple
Quartz tube adjustable supports
System to locate the combustion boat inside the quartz tube
Control panel for temperature display and calibration
Thermal increase 10 °C/min
Microprocessor-operated thermoregulator with display of the set-point and real temperature of the inner part of the furnace
Digital indicator of the real temperature of the sample measured with a thermocouple
Flowmeter with needle valve
One 250 ml air filtering bottle (17101025)
One 500 ml gas washing bottle (17101024)
One 1000 ml gas washing bottle (17101026)
One 250 ml dehumidifying air bottle (17101025)
Five quartz combustion boats 76 × 16 × 10 mm (17101023)
Dimensions 1200 × 500 × 440 h mm
Weight 30 kg
Power supply 230 VAC, 50 Hz, 2.2 kVA
Standards
CEI EN 50267-1:1999 IT
HD 602 S1:1992 EU
IEC 60754-1
IEC 60754-2
NF X 70-100-1
