Force range, kgf: 0-200
Diameters of dollies, mm: 15,1 (№ 1) and 19,5 (№ 2)
Scales range, MPa:
- Dolly №1: up to 10 MPa (100)
- Dolly №2: up to 6 MPa (60)
Scale, MPa: 1 (№ 1) and 2 (№ 2)
Standards: ASTM D4541, EN13144, ISO4624, ISO16276-1
Weight of adhesion tester, kg, not more: 1
Dimensions of adhesion tester, mm: 150×70
Dimensions of package, mm: L180*W150*H100
Standard package:
- Adhesion tester
- Dollies: № 1 – 3 pcs., № 2 – 3 pcs.
- Holesaw (cutter) for cutting area of testing
- Wrench
- Operating manual
- Case
Description
- Adhesion is the tendency of dissimilar particles or surfaces to cling to one another. In the field of quality testing, adhesion of coatings to the base material, such as: paints, plastic, epoxy mixtures, sprayed metal, laminate to wood and other metal and polymer coatings, is most often measured.

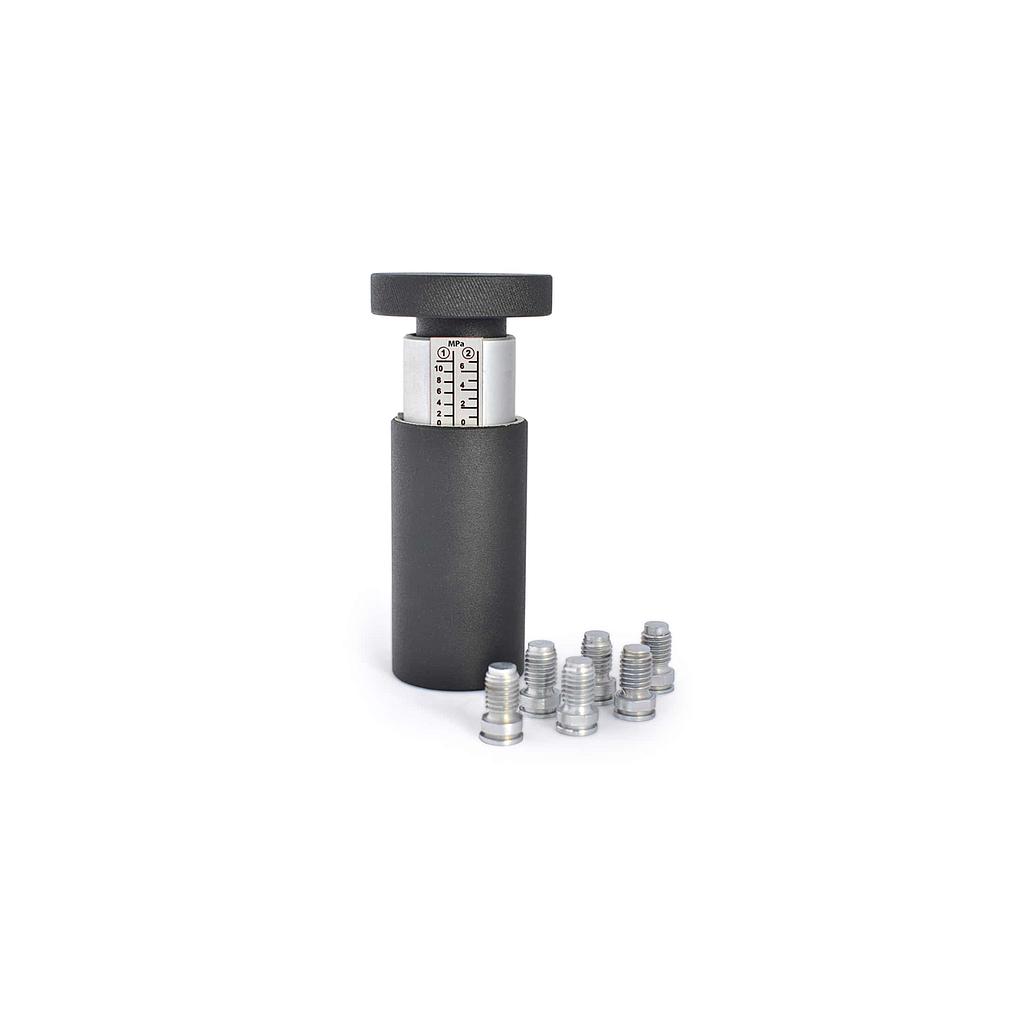

- Tensile Adhesion Tester NOVOTEST AC-4624 is a pull-off type adhesion tester for determining the adhesion strength in MPa and can be used in accordance with EN13144, ISO4624 and ISO16276-1.
- The device is very easy to use, universal, because it can be used with almost any coating, has a reliable design, which has virtually no limitations on the life of the product, and accurate as a device that measures adhesion in numerical terms.
