Scales:- Rockwell: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
-Brinell: HBW2.5/31.25, HBW2.5/62.5, HBW5/62.5, HBW2.5/187.5
-Vickers: HV30, HV100
Initial load: 10kgf (98N)
Testing load: - Rockwell: 60kgf (588N), 100kgf (980N), 150kgf (1471N)
- Brinell: 31.25kgf (306.5N), 62.5kgf (612.9N), 187.5kgf (1839N)
-Vickers: 30kgf (294.2N), 100kgf (980.7N)
Measuring time: 5~60 sec
Hardness range: - Rockwell: (20-88) HRA, (20-100)HRB, (20-70)HRC
- Brinell: (8-650) HB
-Vickers: (14-3000) HV
Accuracy: - Rockwell: accuracy: ±0.1HR, repeatability: 0.5HR
-Brinell: accuracy (δ/％): ±2.5, repeatability (Hcf/％): ≤3.0
-Vickers: accuracy (δ/％): ±2, repeatability (Hcf/％): ≤2.5
Max height of test sample:
- Rockwell indenter – 170 mm (can be produced up to 500 mm)
- Brinell – 140 mm (can be produced up to 470 mm)
- Vickers – 140 mm (can be produced up to 470 mm)
Max depth of test sample: 165 mm (can be produced up to 200 mm)
Microscope zoom: 15X
Lense zoom: 2.5X, 5X
Data output:
- Rockwell – digital indicator
- Brinell – measuring microscope
- Vickers – measuring microscope
Recommended operating conditions:
- Air temperature: 0…+40 °С
- Air pressure: 94 – 106.7 kPa
- Humidity: up to 65%
Net weight: 110 kg
Gross weight: 130 kg
Package dimensions: 550*700*850 mm (L*W*H)
Option Rockwell Hardness Test Block HRC (HRA orHRB): 160 USD
Option Brinell Hardness Test Blocks HB: 300 USD
Option Vickers Hardness Test Blocks HV: 240 USD
Option Leeb Hardness Test Block (type D): 320 USD
Option Leeb Hardness Test Block (type G): 800 USD

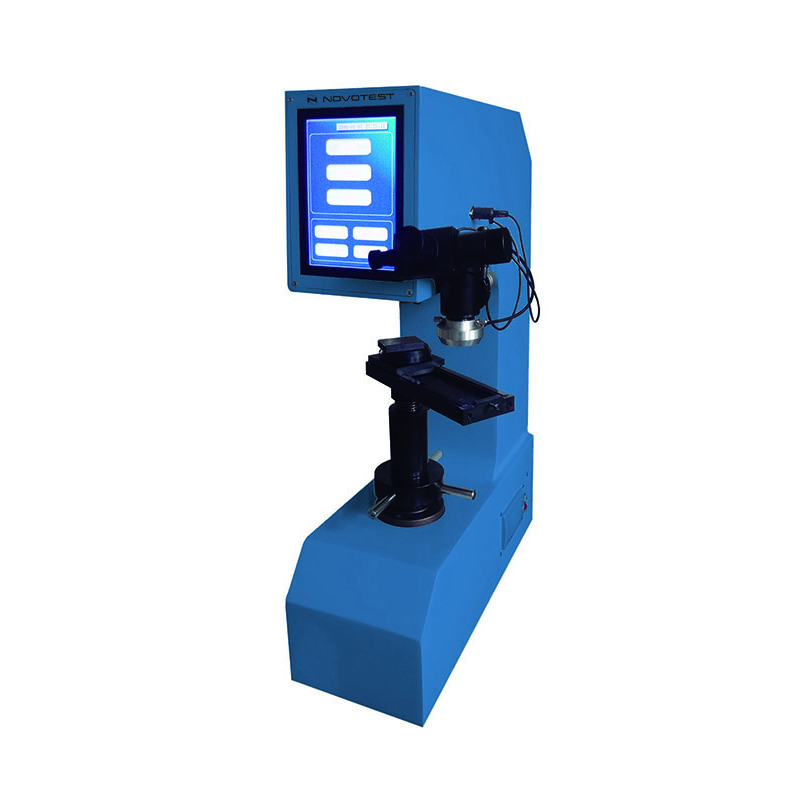

Digital Brinell, Rockwell, Vickers Hardness Tester NOVOTEST TB-BRV-D implements direct Brinell,
Rockwell and Vickers methods of hardness testing in accordance with ISO 6508, ASTM E10, ASTM E92, ASTM E18.
Application
The device allows user to carry out:
- hardness testing of ferrous metals (steel, cast iron, low carbon steel and tempered steel, etc);
- hardness testing of non-ferrous metals (alloys from aluminum, copper, etc);
- hardness testing of hard alloys, carbonized and chemically treated layers.
Tester application in different scales allows user to solve nearly all hardness measurement requirements: hardness measurement in a wide range – from very soft up to the hardest materials.
Description
Digital Universal Hardness Tester is a TOP high-tech multi-purpose, and multi-functional hardness testing equipment, with digital LCD touch screen.
This hardness tester uses different types of indenters and multi-stage test load for hardness testing of wide range of tested products in different scales: Brinell, Rockwell and Vickers.
Hardness tester provides the high sensitivity and accuracy of the load level, and the high accuracy of the measuring values. The machine has built-in high precision microscope with backlighting.
Hardness tester is supplied with a special table which allows user to measure the diameters of imprints without removing the sample. The hardness tester has special stand for the microscope, which significantly simplifies operating the device.
Besides manual testing platform, it is completely achieve automatic operation, including loading, unloading, hardness value directly display etc.
Hardness tester TB-BRV-D is one of the easiest device in operating and servicing, but at the same time it is universal and multi-functional instrument in its class. Touch screen and automatically testing system make operator’s work much more comfortable.
User can measure hardness in various scales and have no problems with hardness measurement in a wide range – from very soft materials up to some of the hardest materials.
