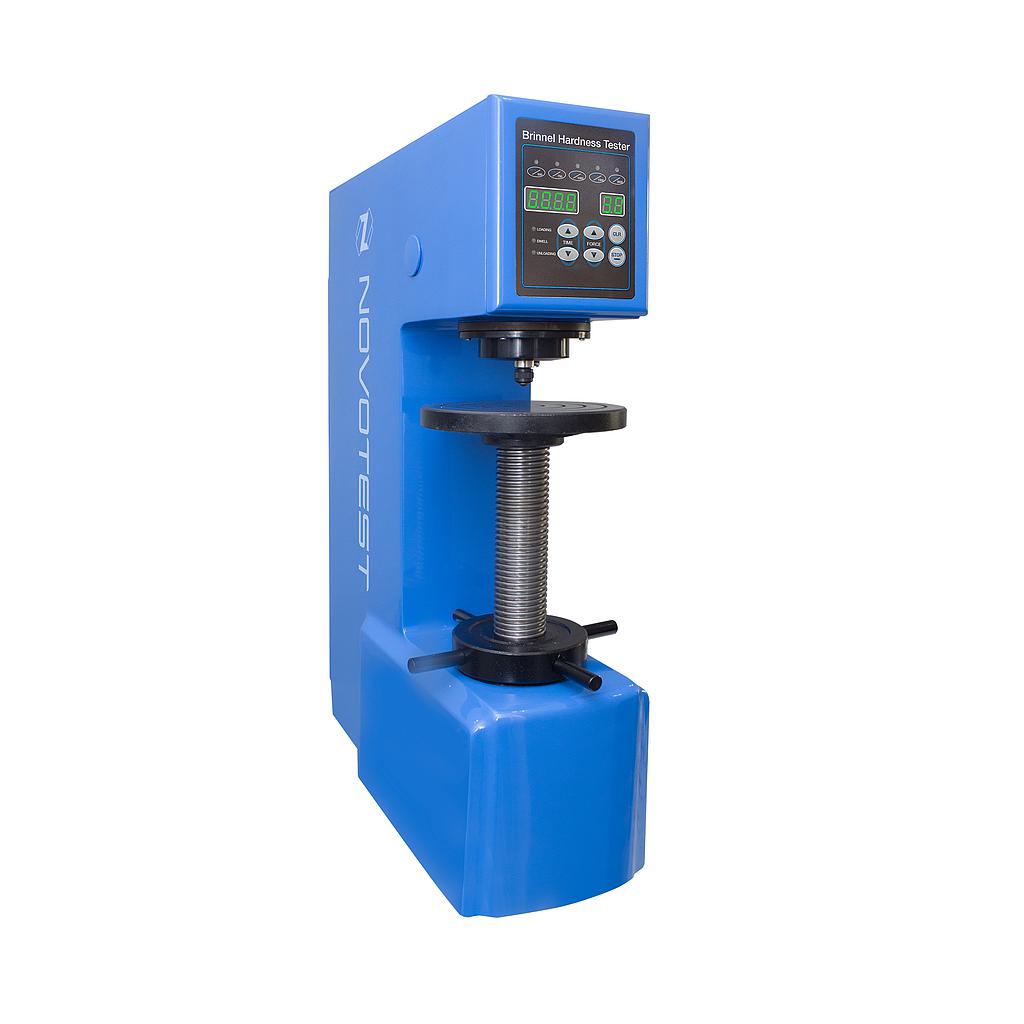

NOVOTEST TS-B-C1 Brinell Hardness Tester (8 ~ 650 HBW)

Brinell scales:

HBW 2.5/62.5

HBW 2.5/187.5

HBW 5/62.5

HBW 5/125

HBW 5/250

HBW 5/750

HBW 10/100

HBW 10/250

HBW 10/500

HBW 10/1000

HBW 10/1500

HBW 10/3000

Conversion to other scales: Manual conversion by the conversion tables for Rockwell and Vickers scales

Test forces:

62.5kgf (612.9N)

100kgf (980.7N)

125kgf (1226N)

187.5kgf (1839N)

250kgf (2452N)

500kgf (4903N)

750kgf (7355N)

1000kgf (9807N)

1500kgf (14710N)

3000kgf (29420N)

Measurement accuracy: ≤125 HB: ±3,0 %125 < HBW ≤ 225: ±2.5 %>225: ±2.0 %

Dwell time:5 – 60 s, adjustable

Testing materials:

+ Steel and cast iron

+ Сoarse-grain metal materials (casted parts, non-ferrous metals and alloys, copper and copper alloys)

+ Tempered steels, hardened and tempered steels

+ Soft metals (pure aluminum, lead, tin) and others

+ Hard plastics and bakelite

Size and requirements to test objects: Thick and small and large objects with rough surface such as rusty and roughly machined parts

Hardness test range:8 ~ 650 HBW

Microscope magnification: 20x

Microscope resolution: 0.005 mm

Maximum height of the test object: 220 mm (optionally 500 mm)

Maximum depth of the test object: 135 mm

Data output: Digital display; RS-232; Printer (optional)

Type: Digital, electronic

The power source and the voltage: AC 220V ± 5%, 50-60 Hz

Dimensions: 650 x 500 x 850 mm

Net weight: ~130 kg

Gross weight: ~140 kg

Color: Blue

Standard Package

Brinell Hardness Tester NOVOTEST TS-B-C1 – 1 pc

Hard alloy steel balls (d=2.5; 5, and 10 mm) – 1 pc each

20X measuring microscope – 1 pc

Large testing table (d=20 mm) – 1 pc

Medium testing table (d=60 mm) – 1 pc

V-shaped testing table (d=80 mm) – 1 pc

Brinell hardness test blocks:

– HBW/3000/10 (150～250) – 1 pc

– HBW/1000/10 (75～125) – 1 pс

– HBW/187.5/2.5 (150～250) – 1 pc

Bolt adjuster – 4 pcs

Power supply unit with cable – 1 pc

Fuse – 2 pcs

Operation manual

Transportation box.
