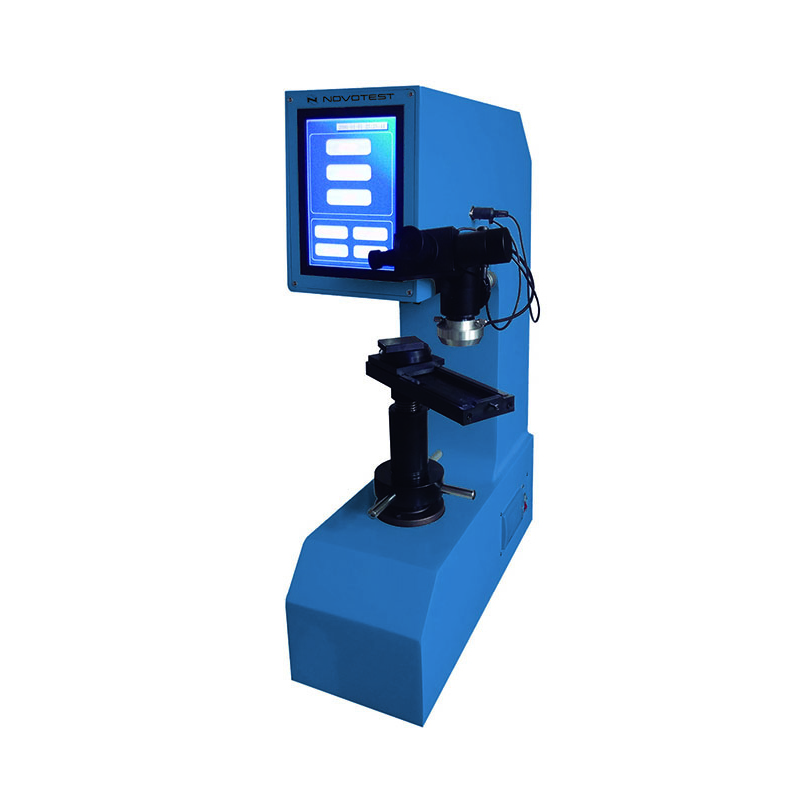

NOVOTEST TS-BRV-C Brinell, Rockwell, Vickers Hardness Tester

Indenters:

+ Rockwell: conical diamond indenter with a 120° apex angle

+ Brinell: Hard alloy steel balls 1.5875 mm, 2.5 mm, and 5 mm

+ Vickers: four-sided diamond indenter (136 °)

Test forces:

HRA, HRB, HRC, HRD, HRF, and HRG

HBW 2.5/15.625

HBW 2.5/31,25

HBW 2.5/62.5

HBW 5/62.5

HBW 5/125

HBW 2.5/187.5

HV5, HV10, HV20, HV30, HV50, and HV100

Scales conversion:

HRA, HRB, HRC, HRD, HRF, HS

HR15T, HR30T, HR45T

HR15N, HR30N, HR45N

HRC

HB

HV

Start load: 10 kgf (98N)

Test forces:

+ Rockwell: 60 kgf (588N), 100 kgf (980N), 150 kgf (1471N)

+ Brinell: 15.625 kgf (153.2N); 31.25 kgf (306.5N); 62.5 kgf (612.9); 125 kgf (1226N); 187.5 kgf (1839N)

+ Vickers: 30 kgf (294.2N), 100 kgf (980.7N)

Measuring time: 5 – 60 sec, adjustable

Testing materials:

+ Cemented carbides, thin steel, shallow case-hardened steel

+ Copper alloys, soft steels, aluminum alloys, malleable iron

+ Steel, hard cast irons, pearlitic malleable iron, titanium, deep case-hardened steel, other materials

+ Thin steel and medium case-hardened steel and pearlitic malleable iron

+ Cast iron, aluminum and magnesium alloys, bearing metals, thermoset plastics

+ Annealed copper alloy, thin soft sheet metals

+ Phosphor bronze, beryllium copper, malleable irons

Hardness range:

+ Rockwell: (20-88) HRA, (20-100) HRB, (20-70) HRC

+ Brinell: (8-650) HB

+ Vickers: (14-3000) HV

Measurement accuracy:

+ Rockwell: accuracy: ±0.1HR, repeatability: 0.5HR

+ Brinell: accuracy (δ/％): ±2.5 HB, repeatability (Hcf/％): ≤3.0 HB

+ Vickers: accuracy (δ/％): ±2HB, repeatability (Hcf/％): ≤2.5 HB

Max height of test object:

+ Rockwell indenter – 170 mm (can be produced up to 500 mm)

+ Brinell – 140 mm (can be produced up to 470 mm)

+ Vickers – 140 mm (can be produced up to 470 mm)

Max depth of test object: 165 mm (optionally up to 200 mm)

Microscope magnification: 100Х, 50Х, 25Х

Lense magnification: 10X, 2.5X, 5X

Data output:

+ Rockwell – digital display

+ Brinell – measuring microscope and digital display

+ Vickers – measuring microscope and digital display

+ Built-in printer

+ RS-232 interface for PC connection

Recommended operating conditions:

+ Air temperature: 0…+40 °С

+ Air pressure: 94 – 106.7 kPa

+ Humidity: up to 65%

Net weight: ~110 kg

Gross weight: ~ 130 kg

Dimensions: 550 x 700 x 850 mm

Standard Package

Digital Universal Hardness Tester NOVOTEST TB-BRV-D – 1 pc

Rockwell conical diamond indenter with a 120° apex angle – 1 pc

Vickers indenter (Four-sided diamond pyramid (136 °)) – 1 pc

Brinell indenter (1.5875, 2.5, and 5mm hard alloy steel balls)

Microscope for Brinell and Vickers scales – 1 pc

Lens (2.5X and 5X) – 2 pcs (1 pc each)

Large testing table – 1 pc

Medium testing table – 1 pc

V-shaped testing table – 1 pc

Movable testing platform – 1 pc

Rockwell Hardness Test Blocks:– HRC – 2 pcs – HRB – 1 pc

Brinell Hardness Test Block HB – 1 pc

Vickers Hardness Test Block HV – 1 pc

Bolt adjustor – 4 pcs

Power cable – 1 pc

Fuse – 2 pcs

Operation manual

Calibration certificate

Transportation box
