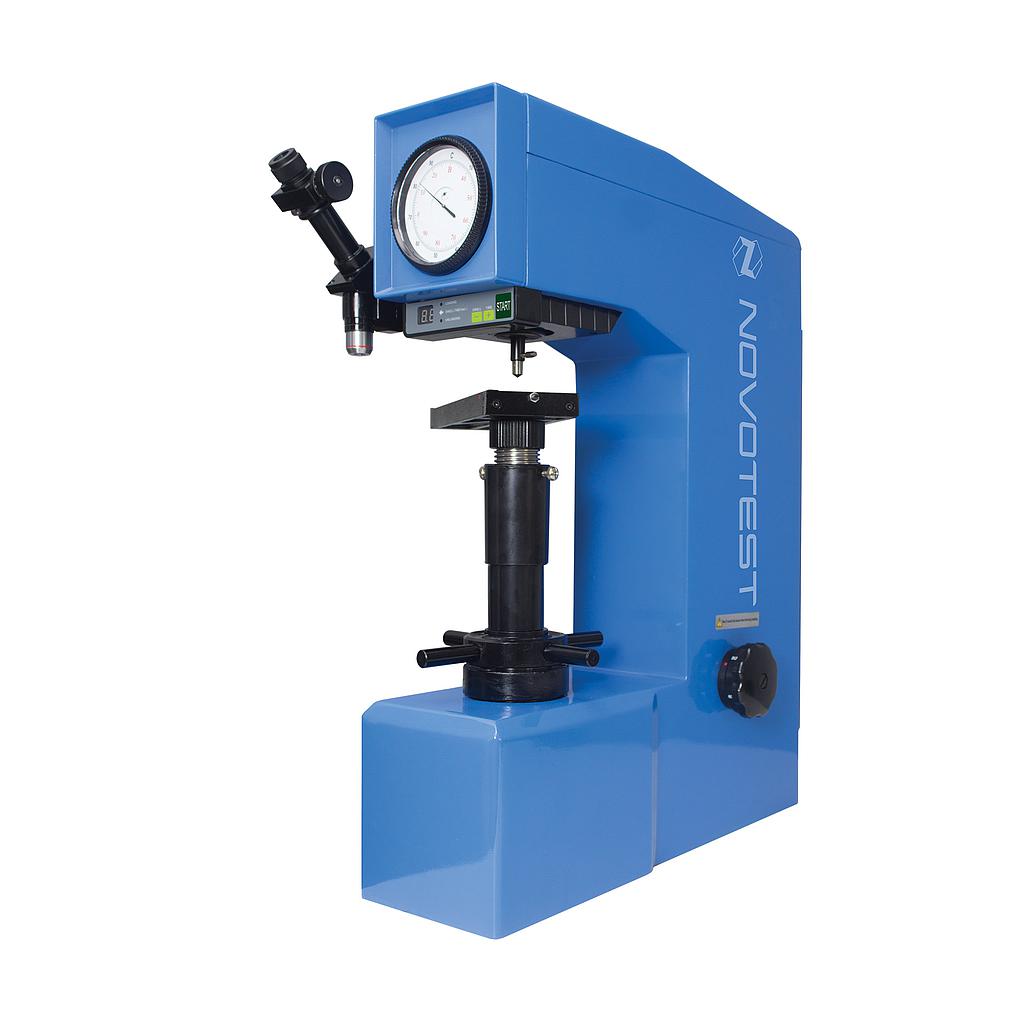

NOVOTEST TS-BRV Brinell, Rockwell, Vickers Hardness Tester

Indenter:

+ Rockwell: conical diamond indenter with a 120° apex angle

+ Brinell: Hard alloy steel ball with a diameter of 1.5875, 2.5, and 5 mm

+ Vickers: four-sided diamond pyramid (136 °)

Test forces:

+ Rockwell: 60 kgf (588N), 100 kgf (980N), 150 kgf (1471N)

+ Brinell: 31.25 kgf (306.5N), 62.5 kgf (612.9N), 187.5 kgf (1839N)

+ Vickers: 30 kgf (294.2N), 100 kgf (980.7N)

Dwell time: 5 ~ 60 sec

Testing materials:

+ Cemented carbides, thin steel, shallow case-hardened steel

+ Copper alloys, soft steels, aluminum alloys, malleable iron

+ Steel, hard cast irons, pearlitic malleable iron, titanium, deep case-hardened steel, other materials harder than 100 HRB

+ Thin steel and medium case-hardened steel and pearlitic malleable iron

+ Cast iron, aluminum and magnesium alloys, bearing metals, thermoset plastics

+ Annealed copper alloy, thin soft sheet metals

+ Phosphor bronze, beryllium copper, malleable irons

Scales and ranges:

+ Rockwell: (20-88) HRA, (20-100) HRB, (20-70) HRC

+ Brinell: (8-650) HBW

+ Vickers: (14-3000) HV

Measurement accuracy:

20 – 75 HRA: ± 2

75 – 88 HRA: ± 1.5

20 – 45 HRB: ± 4

45 – 80 HRB: ± 3

80 – 100 HRC: ± 2

20 – 70 HRC: ± 1.5

100 – 250 HV: ± 2%

300 – 1000 HV: ± 3%

≤125 HBW: ± 3 HBW

125<HBW≤22: ± 2.5 HBW

>225 HBW: ± 2 HBW

Dwell time: 2 – 60 s

Max height of test object:

+ Rockwell scale – 170 mm (optionally up to 400 mm)

+ Brinell scale – 140 mm (optionally up to 370 mm)

+ Vickers scale – 140 mm (optionally up to 370 mm)

Maximum depth of the test object: 165 mm

Data output: Dial indicator

Type: Mechanical electrical, analog

Power supply: AC 220V ± 5%, 50-60 Hz

Microscope zoom: 15X

Lense zoom: 2.5X, 5X

Data output:

Rockwell – dial

Brinell – measuring microscope

Vickers – measuring microscope

Operating conditions:

+ Air temperature: 0…+40 °С

+ Air pressure: 94 – 106.7 kPa

+ Humidity: up to 65%

Net weight: ~ 70 kg

Gross weight: ~ 85 kg

Package dimensions: 520 х 420 х 700

Standard Package

Universal Hardness Tester NOVOTEST TS-BRV – 1 pc

Rockwell conical diamond indenter with a 120° apex angle – 1 pc

Vickers indenter (four-sided diamond pyramid indenter (136 °) – 1 pc

Brinell indenter (1.5875, 2.5, and 5 mm) – 1 pc each

Weight – 5 pcs

Large testing table – 1 pc

Medium testing table – 1 pc

V-shaped testing table (D=40mm) – 1 pc

Movable testing platform – 1 pc

Rockwell Hardness Test Blocks:

– HRC – 2 pcs

– HRB – 1 pc

Brinell Hardness Test Block HB – 1 pс

Vickers Hardness Test Block HV – 1pс

Power cable – 1 pc

Fuse – 2 pcs

Operation manual

Transportation box
