Operating frequency range: from 1 to 10MHz
Range of measured time intervals (duration of scanning): from 6 to 1000 µs
Velocity range: 1000 – 9999 m/s
Testing gain range: 126 dB
Range of variation of temporal sensitivity adjustment (TVG): 1-40 dB
Number of control points TVG: 16
Duration of the excitation pulse to the load: from 12.5 to 0,5 µs
Scan range: from 8 up to 250 μs (500 and more by special order)
from 0,48mm up to 1500mm (in Steel V=6000m/s) (3000m and more by special order)
Sweep delay range: from 0 up to 1000 μs
Operating modes: DAC, TVG, DGS, AWS, AFS, ASD
Menu language: English, Russian
Dimensions (W*H*L): 165x90x50 mm
Power Supply: Built-in Li-ion Battery
Time of continuous work, not less than, h: 8
Operating temperature range for the electronic unit, °C: -20 to +40
Air moisture, no more: ≤98 %, at 35 °С
Weight, not more: 500 g
Standard package:
- Ultrasonic flaw detector UD2303
-UT-probes – 2 pcs
-Cable Lemo-Lemo – 1 pc
-Charger
-USB cable for PC connection
-PC program ( available from site download )
-Operating manual
-Case
Optional accessories:
- Additional probes (UT) and cables
- Standard calibration blocks
- Custom calibration blocks
- Couplant (gel)
Description:

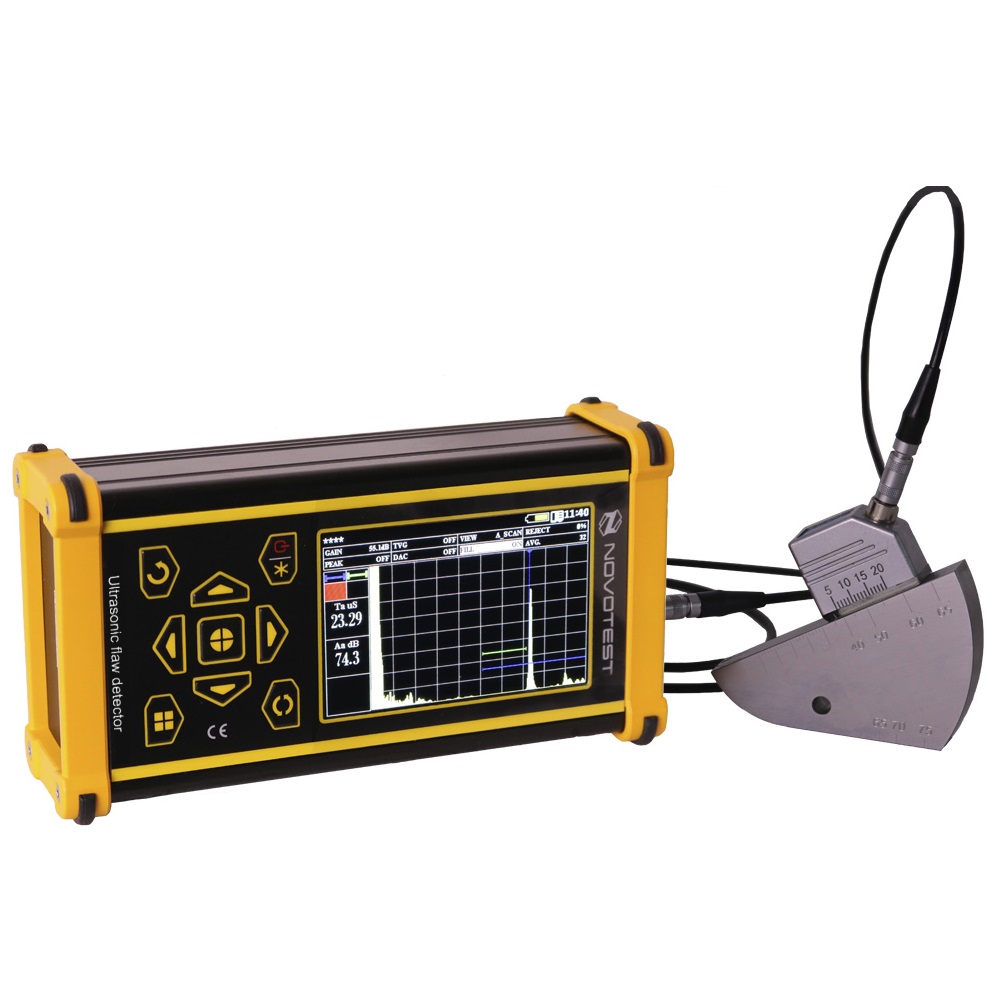

Ultrasonic flaw detector UD2303 is a compact version of an industrial flaw detector with a set of functions and modes that are designed to simplify the routine process of product quality control as much as possible. Shock-resistant aluminum alloy case with a large battery will provide a long service life of the device and ability to be used in adverse conditions.
Advantages:
- Automatic calibration
- Intuitive device menu
- Adjustable excitation pulse generator
- Saving measurement results and ability to viewing
- Transfer of archived records to PC
