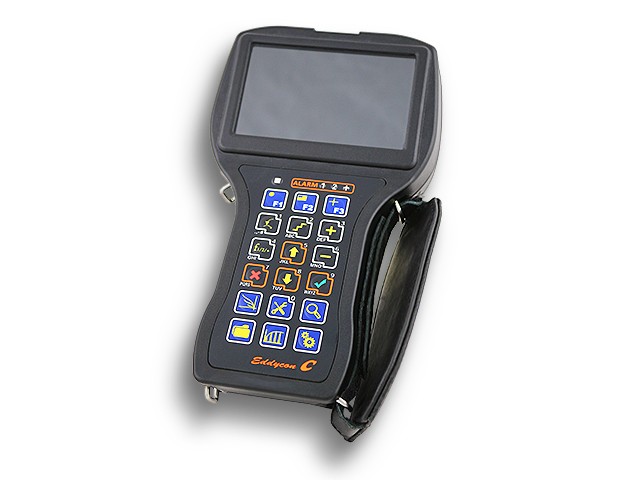

OKO Eddycon C Portable eddy current flaw detector-tester


Housing
Overall dimensions : 230 mm × 135 mm × 98 mm
Weight: up to 0.9 kg
Applicable standards: СЕ, EN-15548
Supply mains: 100 V to 240 V, 50 Hz - 60 Hz
Inputs & outputs: 2.0 USB-port (hub), Ethernet (Lemo 4-way), headphones (Lemo 4-way)
Keypad: English, international (icons)
Operation conditions
Operation temperature: -20 to +50
Storage temperature: -20 to +50
IP rating: IP 64
Battery
Type: Li-Ion 12В/4500 mA·h
Operation time: Normal mode — up to 7 hours If using rotary scanners — 4 to 5 hours
Display
Display size: 93.6 mm ×56.16 mm; 4.3"
Type : Color TFT (800×480 pixels)
Display modes: Normal, full-screen; three color schemes
Grid: Three types: coarse, fine, polar
Connectivity and data storage
PC software: Test results processing program
Data storage: MicroSD 4 Gb internal memory card (up to 64 Gb as an option);
ET specifications
Frequency range: 0.01 to 16000 kHz
Gain: 70 dB
Probe supply voltage: 0.5 V; 1V; 2V; 4V; 6V
Additional gain: 30 dB
Phase rotation: 0 to 359.9
Digital scale: 1/16 to 16, with a step of 6 dB
Test frequency: 1 to 11 kHz
Signal indication time: 0.1 s; 0.3 s; 0.5 s; 1 s; 2 s; 3 s; 4 s; 5 s; 8 s
Filter
Low-pass: 1 to 5 500 Hz
High-pass: 1 to 5 500 Hz
Bandpass
Averaging
Differential
Connected probes: Single- & transformer-type
Probe connector: Lemo 00, Lemo 12-way / Lemo 16-way
Signal display modes :
Complex plane – X(y);
Time base – X(t), Y(t);
Dual-frequency mode
Threshold level types : Circle, Threshold, Sector, Trapezium
Multi-frequency operation:
Dual-frequency multiplexing;
Independent control of both frequencies;
Mix of two frequencies (F1 - F2, F1 + F2)
