Display

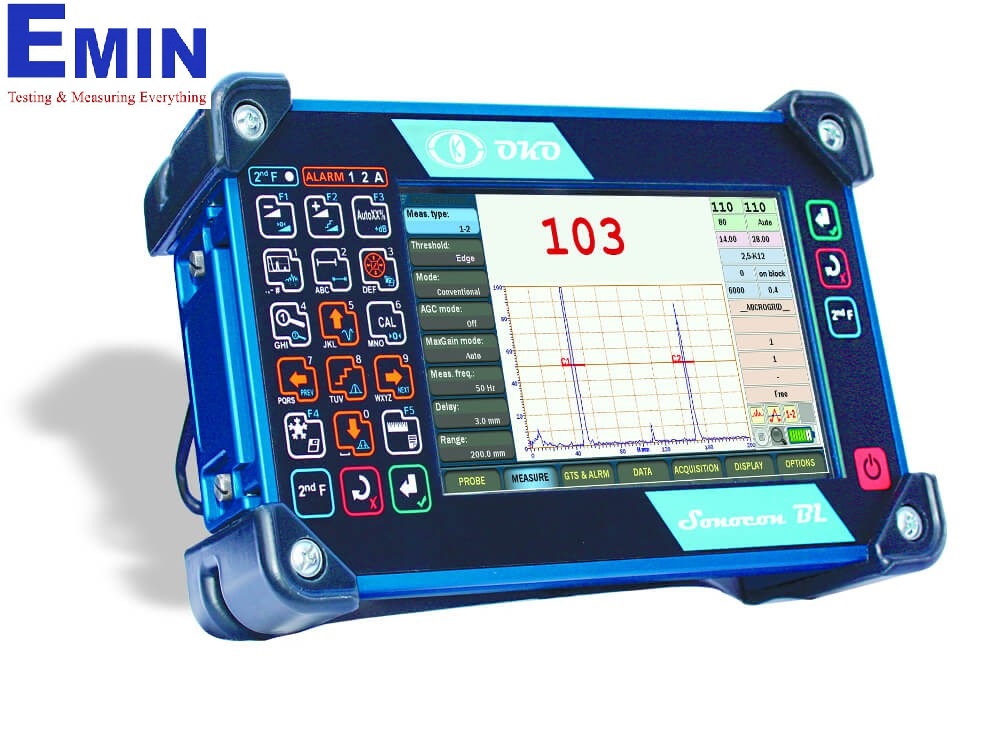

SizeSonocon BL: 7.2”
Resolution800×480
Connectors
Probe connectors2 × BNC or
2 × LEMO-1 or
2 × LEMO-00
Analog outputAlarm
USB1Type A
LAN✔
Pulser
TypesSpike + Square Wave (SWP)
Voltage (SWP)50 V, 100 V,
150 V, 200 V,
250 V, 300 V,
400 V
Energy (SWP)20 ns to 1000ns with 10 ns step Manual & Auto modes
Voltage (Spike)Low: 50 V,
High: 300 V
Damping✔
PRF modesComfort, Low,
Medium, High,
Manual
PRFfrom 15 to 6000 Hz
Phantoms control3 modes
Receiver
Range (at steel longitudinal wave)8 000 mm (314 in)
Gain0 to110 dB,
with 0.1 dB step
Max signal input20 V p-p
Bandwidth0.2 MHz - 27 MHz
Filters0.2-27 MHz,
0.2-10 MHz,
2.0-21.5 MHz,
8.0-26.5 MHz,
0.5-4 MHz,
0.2-1.2 MHz,
1.5-8.5 MHz,
5-15 MHz,
0.4 MHz,
0.5 MHz,
1 MHz,
1.25 MHz,
2 MHz,
2.25 MHz,
2.5 MHz,
3.5 MHz,
4 MHz,
5 MHz,
7.5 MHz,
10 MHz,
15 MHz,
20 MHz
Filters set choice✔
RectificationRF, FW, Pos. HW,
Neg. HW
TCG (TVG)110 dB;
110 dB/μs slope
Signal AverageOFF / 2x / 4x / 8x / 16x / 32x / 64x
Reject (cutoff)0-80% FSH
Measurement
Number of gates2
Number of cursors2
Modes1, 2, C1, C2, 1-2, 1-C1, 1-C2, 2-C1, 2-C2, C1-C2
TOF ModesPeak, Edge (Flank)
Amplitude measurementup to 200% FSH
Unitsmm / in / us
Output fields5
Alarm
Number of gates2
Number of levels3
Flaws evaluation
AWS✔
DGS (AVG)✔
DAC✔
DAC: Number of points128
DAC codesASME & ASME III,
EN 1712, EN 1713,
EN1714, JIS Z3060,
GB11345, GB 4730
Custom DAC curvesup to 6
DAC 20-80✔
DAC & TCG✔
Memory
Setups✔
Datasets (with A-Scans)✔
Capacity2 GB (up to 64 GB)
PC software✔
Other Features
Coupling control✔
AGCindependent for both gates
Quick calibration✔
Quick estimate (Best signal catch)✔
Auto XX % (50% or 80%)✔
Reference gain✔
Peak hold (collect, peak memory)✔
Signals compare✔
Smart zoom✔
Choice of menu systemsFull
Simple 1
Simple 2
Keyboard backlight✔
Smart (Context) keyboard backlight✔
Number of keyboard shortcuts241
Physical
DimensionsSonocon BL: 10×6.1×3.1"(256×156×80 mm3)
Weight incl. batterySonocon BL: 5.3 lbs (2.4 kg)
Operating temp. range-30°C to 50°C (-22°F to 122°F)
Dust & water protectionIP65
Battery life8 h
Replaceable battery✔
Included accessories: Main unit, Mascot Type 2542 charger, wrist strap, Software for processing test results on "UT" PC, Batteries, Bags or boxes, instructions for use
The above prices include 0, 45, 60, 75 and standard block
