MEASUREMENTS
Dual element transducer measurement mode: Time interval from a precision delay after the excitation pulse to the first echo
Echo-to-Echo (optional): Time interval between two successive back-wall echoes to eliminate paint or coating thickness
THRU-COAT® measurement (optional): Measurement of true metal and coating thicknesses with a single back-wall echo (with D7906-SM, D7906-RM, and D7908 transducers)
Single element transducer measurement modes (optional)
Mode 1: Time interval between the excitation pulse and the first back-wall echo
Mode 2: Time interval between the delay line echo and the first back-wall echo (with delay or immersion transducers)
Mode 3: Time interval between successive back-wall echoes following the first interface echo after the excitation pulse (with delay line or immersion transducers)
Thickness range: 0.080 mm to 635 mm (0.003 in. to 25.0 in.) depending on material, transducer, surface conditions temperature, and selected configuration (Full range requires single element option)
Material velocity range: 0.508 mm/μs to 18.699 mm/μs (0.020 in./μs to 0.7362 in./μs)
Resolution (selectable):
Low: 0.1 mm (0.01 in.)
Standard: 0.01 mm (0.001 in.)
Single Element option: 0.001 mm (0.0001 in.)
Transducer frequency range
Standard: 2.25 MHz to 30 MHz (–3 dB)
High Penetration (Single Element option): 0.50 MHz to 30 MHz (–3 dB)
GENERAL
Operating temperature range: –10 °C to 50 °C (14 °F to 122 °F)
Keypad: Sealed, color-coded keypad with tactile and audible feedback
Case: Impact-resistant and water-resistant, gasketed case with sealed connectors. Designed for IP67.
Dimensions (W x H x D): Overall: 91.1 mm x 162 mm x 41.1 mm (3.59 in. x 6.38 in. x 1.62 in.)
Weight: 430.9 g (0.95 lb)
Power supply: 3 AA batteries/USB power supply
Battery life operating time
3 AA alkaline: 20 to 21 hours
3 AA NiMH: 22 to 23 hours
3 AA Lithium: 35 to 36 hours
Standards: Designed for EN15317
INPUTS/OUTPUTS
USB: 2.0 client
Memory card: Maximum capacity: 2 GB removable MicroSD memory card
INTERNAL DATA LOGGER (Optional)

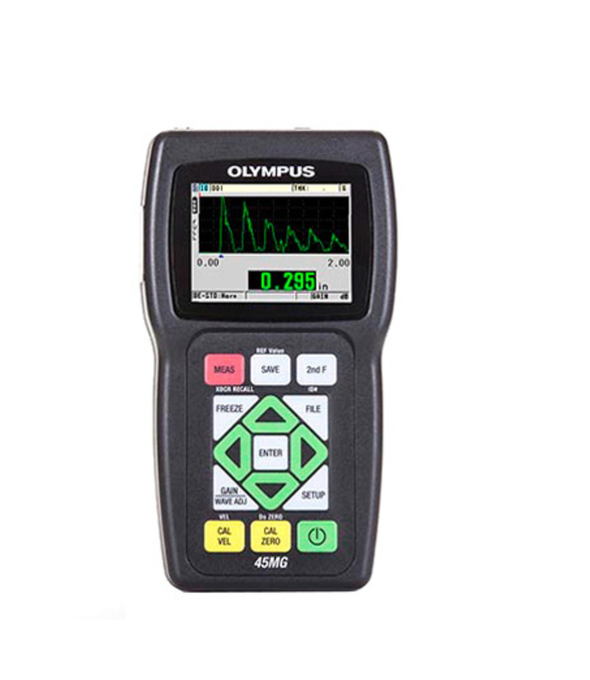

Data logger: The 45MG identifies, stores, recalls, clears, and transmits thickness readings, waveform images, and gage configuration information through USB or MicroSD.
Capacity: 475,000 thickness measurements or 20,000 waveforms with thickness measurements
File names, IDs, and comments: 32-character file names and 20-character alphanumeric location codes with four comments per location
File structures: Six standard or custom application-specific file structures
Reports: On-gage reporting of summary with statistics, Min./Max. with locations, Min. review, file comparison, and alarm report
