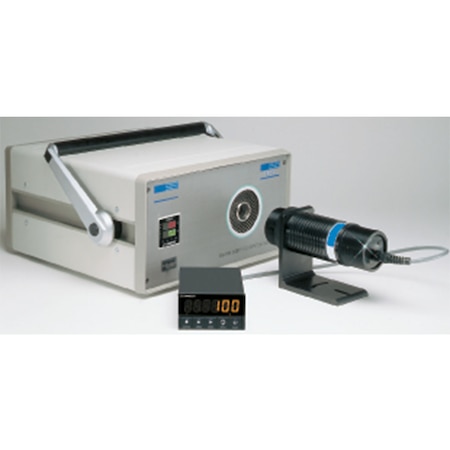

OMEGA BB-4A 100 °C to 982 °C Temperature Blackbody Calibrator

Width: 410 mm

Height: 190 mm

Length: 264 mm

Weight: 8 kg

Accuracy: ± 1 °C (± 1.8 °F)

Frequency: 50/60 Hz

Stability: ±0.15°C

Target Size: 21.56

Control Mode: PID Control

Display Type: LED

Warm Up Time: 1.0 hrs

Accuracy Note: ±1°C, ±0.25% (±1.8°F ±0.25%) rdg

Data Interface: RS232

Stability Note: ±0.15°C or less

Supply Voltage: 115 Vac

supply-voltage: 115 Vac

Cavity Emissivity: 0.99

Power Consumption: 400 W

Warm-Up Time Note: 1.0 hr from ambient to 982°C (1800°F)

Cavity Opening Size: 22

Additional Features 1: Portable

Internal Sensing Element: Type K Thermocouple

Process Temperature, Max: 982 °C

Process Temperature, Min: 100 °C

Operating Temperature, Max: 50 °C

Operating Temperature, Min: 0 °C
