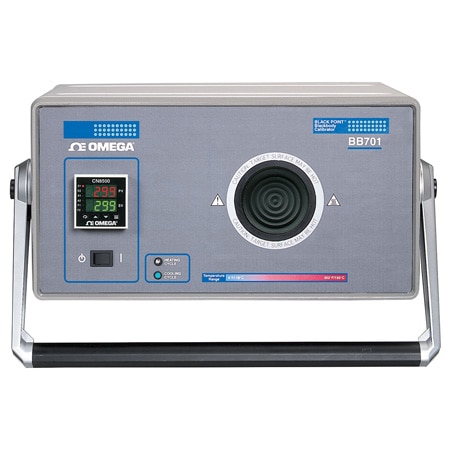

OMEGA BB701 -18 °C to 149 °C Temperature Blackbody Calibrator

Width: 35.5 mm

Height: 19.5 mm

Length: 36.5 mm

Weight: 12.7 kg

Accuracy: ± 0.8 °C (± 1.44 °F)

Frequency: 50/60 Hz

Stability: ± 0.6°C

Target Size: 63.5

Control Mode: PID Control

Display Type: LED

RTD Accuracy: ± 0.375 °C

Warm Up Time: 5 min

Accuracy Note: ±0.8°C +1 digit (±1.4°F ) (worst case), ±0.3°C (±0.6°F) [over entire scale]

Cool-Down Time: 5 m

Data Interface: RS232

Stability Note: ± 0.6°C (± 1.2°F) or less

Supply Voltage: 115 Vac

supply-voltage: 115 Vac

Cavity Emissivity: 0.95

Power Consumption: 175 W

Warm-Up Time Note: 5 min, from ambient to 149°C (300°F)

Cool-Down Time Note: 5 min, from ambient to -18°C (0°F)

Additional Features 1: Portable

Installation Category: II

Internal Sensing Element: Platinum RTD, 100 Ω, 0.00385

Process Temperature, Max: 149 °C

Process Temperature, Min: -18 °C

Operating Temperature Note: 4.4 to 29.4°C (40 to 85°F) [target plate reaches 0°F]; 4.4 to 43°C (40 to 110°F) [target plate reaches 11.8°F]

Operating Temperature, Max: 43 °C

Operating Temperature, Min: 4.4 °C

Calibration Reference Sensor: Platinum RTD, 100 Ω, 0.00385
