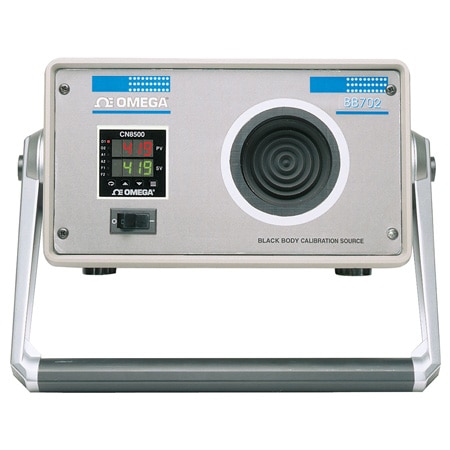

OMEGA BB702 Ambient 10 °C to 215 °C Temperature Blackbody Calibrator

Width: 305 mm

Height: 152 mm

Length: 280 mm

Weight: 7.2 kg

Accuracy: ± 0.5 °C

Frequency: 50/60 Hz

Stability: ±0.1°C

Target Size: 63.5

Control Mode: PID Control

Display Type: LED

Warm Up Time: 12 min

Accuracy Note: ±0.5°C, ±0.25% rdg (±0.9°F, ±0.25% rdg)

Data Interface: RS232

Supply Voltage: 115 Vac

Cavity Emissivity: 0.95

Power Consumption: 75 W

Warm-Up Time Note: 12 min from ambient to 204°C (400°F)

Additional Features 1: Portable

Installation Category: II

Internal Sensing Element: Platinum RTD, class A, alpha = 0.00385

Process Temperature, Max: 215 °C

Process Temperature, Min: 10 °C

Operating Temperature, Max: 45 °C

Operating Temperature, Min: 5 °C

Calibration Reference Sensor: Platinum RTD, class A, alpha = 0.00385
