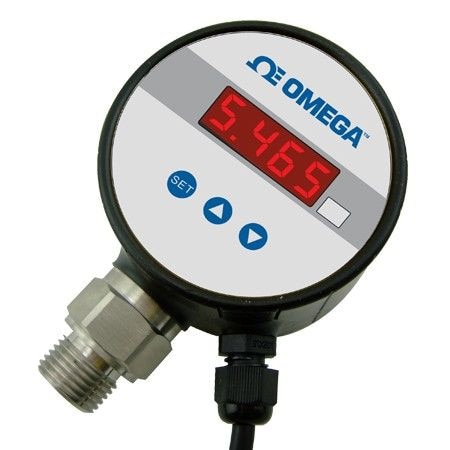

OMEGA DPG110-200A Stainless Steel DC Loop Powered Digital Pressure Gauge (Absolute, 200 psi, NPT Male, 1/4 in, IP65)

Height: 106 mm

Length: 48 mm

Stability: ≤0.2% FS/year

Calibration: Press ▼for 5 seconds for zero calibration.Press ▲ for 5 seconds for full scale calibration

Display Type: 4 Digit LED

Accuracy Note: ± 0.25% for gauge pressure >5psi ± 0.5% FS for all others including absolute,compound gauge, and Vacuum ranges

Output Signal: Current

Pressure Type: Absolute

Pressure, Max: 200 psi

Pressure, Min: 0 psi

Accuracy Class: < 0.1%

Burst Pressure: 4x Full Scale

Outer Diameter: 82 mm

Proof Pressure: 200% Full Scale

Supply Voltage: 12 to 30 Vdc

Number of Digits: 4

Electrical Output: 4 to 20 mA

Enclosure Ratings: IP65

Materials, Wetted: 316 Stainless Steel

Pressure Accuracy: ± 0.5 %

Relative Humidity: ≤90%

Supply Power Type: Loop Powered

Wiring/Connector Table: RED: +24VDC, Black: Ground

Process Connection Size: 1/4 in

Process Connection Type: NPT Male

Operating Temperature, Max: 80 °C

Operating Temperature, Min: -30 °C
