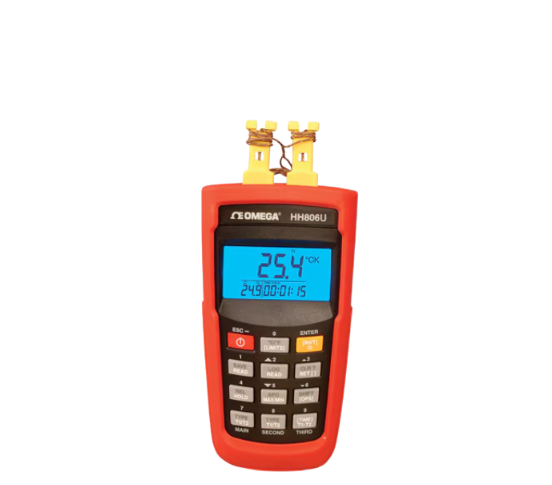

OMEGA HH806AU 2 Channel 7 Thermocouple Types USB Datalogger (-200 to 1372 °C,K, Type J, T, E, R, S, N)

Specifications

Measurement Range:

Type K: -200 to 1372°C (-328 to 2501°F)

Type J: -210 to 1200°C (-346 to 2192°F)

Type T: -200 to 400°C (-328 to 752°F)

Type E: -220 to 1000°C (-364 to 1832°F)

Type R: -0 to 1767°C (32 to 3212°F)

Type S: -0 to 1767°C (32 to 3212°F)

Type N: -50 to 1300°C (-58 to 2372°F)

Accuracy: Stated accuracy at 23°C ±5°C, <75% RH

Type K/J/T/E:

±(0.05% rdg + 0.3°C) from -50 to 1372°C

±(0.05% rdg + 0.7°C) from -50 to -210°C

±(0.05% rdg + 0.6°F) from -58 to 2501°F

±(0.05% rdg + 1.4°F) from -58 to -346°F

Type N:

±(0.05% rdg + 0.8°C) from -50 to 0°C

±(0.05% rdg + 0.4°C) from 0 to 1300°C

±(0.05% rdg + 1.6°F) from -58 to 32°F

±(0.05% rdg + 0.8°F) from 32 to 2372°F

Type R/S:

±(0.05% rdg + 2°C) from 0 to 1767°C

±(0.05% rdg + 4°F) from 32 to 3212°F

Operating Environment: 0 to 50°C at <70% RH

Storage Temperature: -20 to 60°C, 0 to 80% RH with battery removed

Battery: 4 x 1.5V “AAA” (included)

Dimensions: 160 mm (H) x 83 mm (W) x 38 mm (D) [6.3 in x 3.3 in x 1.5 in]

Display: Triple Display

Input types: K/J/T/E/R/S/N

Data Storage: 256 on demand + 16000 in logging mode

Number of Inputs: 2

Wireless: No

USB Port: Yes

DC Power Jack: Yes

Resolution: 0.1° to 1999°; 1° above (auto ranging)

Wireless Features:

Frequency Range: USA 900 MHz, European 868.0 to 868.6 MHz

Current Consumption: 5 to 20 mA

Approximate Range: 25 m (75 ft)

Note: All wireless units are USA, 900 Mhz frequency band versions. For European 868.0 Mhz˜ 868.6 Mhz frequency band versions, add suffix “E”, no additional charge.

Comes complete with 4 “AAA” batteries, Type K thermocouple (one per channel), rubber boot and operator’s manual
