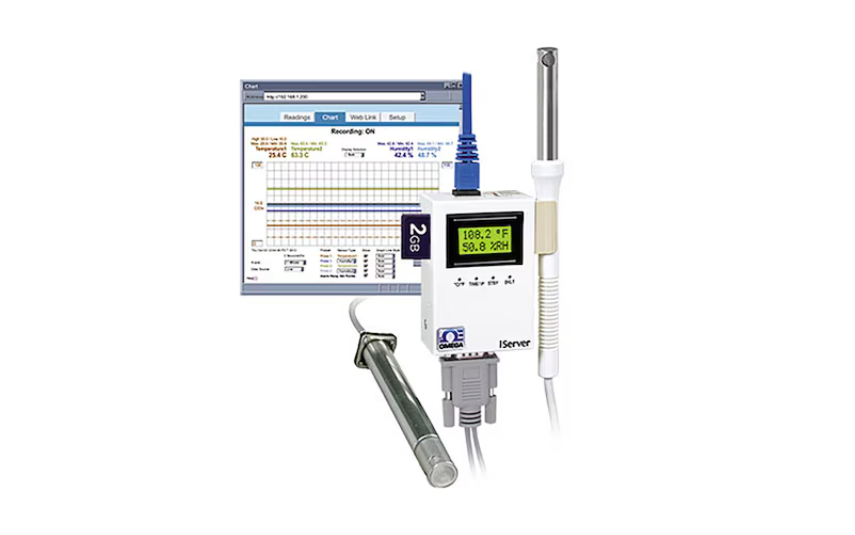

OMEGA iTHX-SD-2 Temperature and Humidity Virtual Chart Recorder (Industrial probe 51mm, 0.9m cable+ DB9 connector, 100%RH, 124°C)

RELATIVE HUMIDITY (RH)

Accuracy/Range at 25°C- Non-Condensing:

±2.75% for 10 to 90%

±3% for 5 to 10% and 90 to 95%

±4% for 0 to 5% and 95 to 100%

Non-linearity: ±3%

Hysteresis: ±1% RH

Response Time: 8 seconds, tau 63%

Repeatability: ±0.1%

Resolution: 0.1%, 12 bit

DEWPOINT: -90 to 125°C (-130 to 257°F)

TEMPERATURE(T)

Industrial Probe:

±0.5°C for 5 to 45°C (±1°F for 41 to 113°F); up to ±1.5°C for -40 to 5°C and 45 to 124°C (up to ±2.7°F for -40 to 41°F and 113 to 255°F) (see chart)

*Note: extended temperature range is for Industrial Probe only, the iServer's operating temp. is 0 to 60 °C.

Response Time: 5 to 30 seconds, tau 63%

Repeatability: ±0.1°C

Resolution: 0.1°C, 14 bit

Industrial Probe iTHP-2:

16mm Diameter x 51mm Long (0.63" x 2")

Cable with DB9 connector: 0.9m Long (3')

Cable operating temperature: -40 to 125°C (-40 to 257°F)
Optional and Standard Caps for Probes: One porous polyethylene cap IP-PCI or IP-PCW (depending on your probe type) is included with each probe. An optional stainless steel cap IP-SC is available for industrial probes.

iSERVER SPECIFICATIONS

Interfaces

Ethernet (RJ45): Fixed or autonegotiating 10/100BASE-T, Auto MDI/MDIX

Sensor: Digital 4-wire (DB-9)

Supported Protocols: TCP, UDP, SNMP, SMTP, NTP, ARP, ICMP, DHCP, DNS, HTTP, and Telnet

LCD Display: 16 Digits 6mm (0.23")

SD Flash Memory Card

2GB card: 8 months of data storage at 1 second recording intervals or 7 years at 10 second intervals

Relay Outputs: Two Relays 1.5A @ 30 Vdc

Management: Device configuration and monitoring through embedded WEB server

Embedded WEB Server: Serves WEB pages containing real-time data and live updated charts within definable time intervals.

ENVIRONMENTAL

Operating Temperature:

iServer Unit: 0 to 60°C (32 to 140°F)

ac Power Adapter: 0° to 40°C (32° to 104°F)

Back-up Battery: -18 to 55°C (-0.4 to 131°F)

Storage Temperature: -40 to 85°C (-40 to 185 °F)

POWER

Power Input: 9 to 12 Vdc

Consumption: 3.5 W

Safety Qualified ac Power Adapter (included)

Nominal Output: 9 Vdc @ 0.5 A

Input: 100 to 240 Vac, 50/60 Hz

Back-up Battery: 9Vdc, Alkaline
