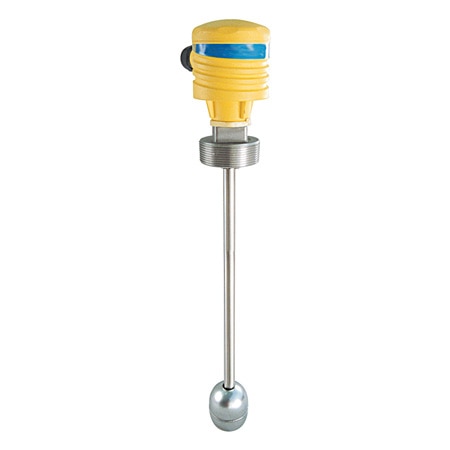

OMEGA LVR532 0.25% Accuracy, NEMA 4X Float Level Transmitter (200 psi, 2 in, NPT Male)
Manufacturer: OMEGA Model: LVR532 - Contact
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Accuracy: ± 0.25 %
Impedance: 600 Ω @ 24 Vdc
Compliance: CE
Configuration: None, fixed span
Output Signal: Current
Supply Voltage: 10 to 30 Vdc
Number of Wires: 2
Enclosure Ratings: IP65, NEMA Type 4X
Indicating Length: 32 in
Materials, Wetted: 316 Stainless Steel
Conduit Connection: 1/2 in NPT female
Enclosure Material: Polypropylene
Mounting Orientation: ± 20° from Vertical
Specific Gravity, Min: 0.55
Operating Pressure, Max: 200 psi
Process Connection Size: 2 in
Process Connection Type: NPT Male
Process Temperature, Max: 85 °C
Process Temperature, Min: -40 °C
Operating Temperature, Max: 60 °C
Operating Temperature, Min: -40 °C
