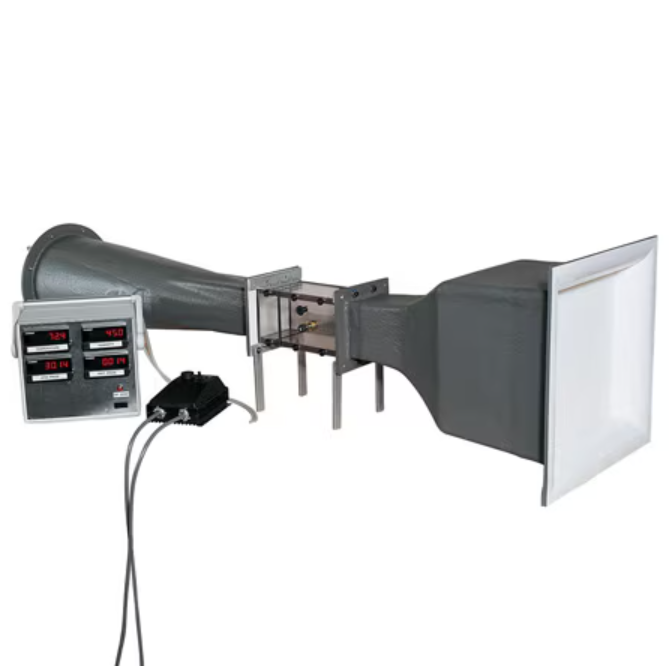

Wind Tunnel
Accuracy: 1% rdg (2% rdg with restrictive plates)
Flow Rates: 25 to 9000 fpm (0.15 to 45 m/s)
Noise: 95 dBA maximum
Size: 1.5 m L x 431.8 mm H (5' x 17")
Motor
Power: 120 Vac
Current: 12 amps
Speed: 10,000 RPM
Motor Control Box
Power: 120 Vac
Speed Adjustment: 10 turn pot.
Internal Adjustment: Minimum, Maximum, acceleration and current limit
Size: 140 W x 184 L x 89 mm H (5.53 x 7.25 x 3.5")
Weight: Wind tunnel: 22.5 kg (49.5 lb);
Standard elec. 3.2 kg (7 lb);
Monitoring Systems
Standard Package: PX657 127 mm (5") H2O differential pressure sensor and DP41-S-A meter with analog output in benchtop case
Standard delivery:
• 1 Wind Tunnel
• 1 Electronics Box* (serial number must match the serial number on the wind tunnel)
• 1 Restrictive Plate A
• 1 Restrictive Plate B
• 1 Motor Controller
• 2 5-foot pieces of Silicone Tubing
• 1 Package of Brass Compression Fittings with Teflon
Ferrules (sizes - 3.175 mm [1⁄8 in], 4.762 [3⁄16 in], 6.35 mm [1⁄4 in], 9.525 mm [3⁄8 in])
• 6 Calibration Report Sheets (3 in metric units, 3 in English units)
• 1 Operator’s Manual for DP41-S Indicator
• 1 Quick Reference Guide for the DP41-S Indicator
• 1 Operator’s Manual for the Motor Controller
• 1 Operator’s Manual for Wind Tunnel
