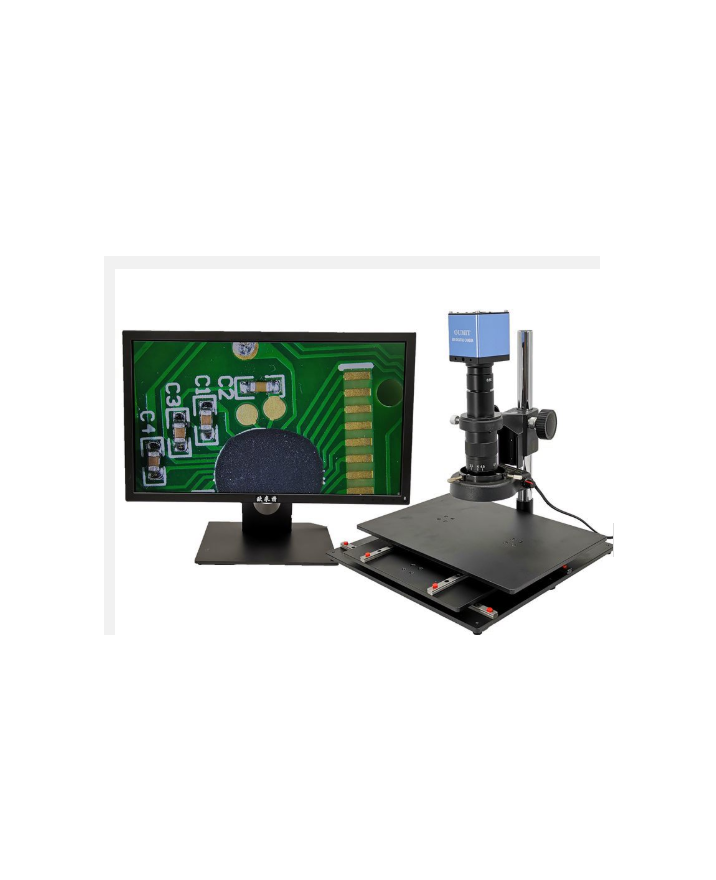

Optical system OMT-10A
Zoom ratio: 1:6.4
Zoom range: 0.7 times --- 4.5 times
Main objective: 1x
Line drawing: Yes, crosshairs, tick marks
Photograph: Yes, USB storage
Measurement: have
Video: have
Contour contrast: Optional
Scan the QR code: Optional
Network port: Optional
Depth of Field Fusion: Optional
Image magnification: 20 times --- 135 times
Optional image magnification: 10 times --- 270 times
CCD interface: 0.5 times
Working distance: 100mm
Center distance: 135mm
Field of view: * Largest field of view 25mm*14mm --- * Smallest field of view 3.6mm*2.0mm
CCD Imaging System OMT-918M
Interface: HDMI
Resolution: 1920 x 1080
Pixel size: 3.75μm x 3.75μm
Target size: 1/2
Number of data bits: 12BIT
Exposure method: Progressive exposure
Output frame rate: 65FPS
Output Color: color
Bracket system
Focusing lens frame: Coarse focus hand wheel, the focus hand wheel is adjustable in tightness, and the lifting range is 50mm
Column type stand: φ32*320（mm）
Work Platform: Size 320×260×16mm Black metal
Lighting system OMT-60C
External light source: LED ring light, input voltage: AV100~240V wide voltage, brightness continuously adjustable
Display section
Monitor: 22-inch HD 1080P display
