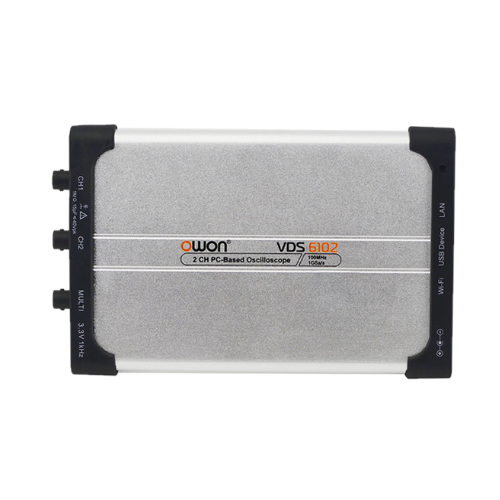

OWON VDS6102 PC Oscilloscope (100M; 1GSa/s; 2CH; 8bits)

Main part:

Bandwidth: 100MHz

Vertical Resolution (A/D): 8 bits

Sample rate: 500 MS/s

Rise Time: ≤ 3.5 ns

Horizontal Scale (s/div): 5ns/div - 100s/div, step by 1 - 2 - 5

Sampling Mode: sample, peak detect, average

Channel Q'nty 3 (2 main one + 1 auxilary)

Record Length max: 10M

Input Coupling: DC, AC, ground

Input Impedance: 1 MΩ ± 2%, in parallel with 15 pF ± 5 pF

Max Input Voltage: 40 V (DC + AC Peak)

DC Gain Accuracy: 3% when ≥ 2 mV

Vertical Sensitivity: 2 mV/div - 5 V/div

Trigger Type: edge, video, slope, pulse

Trigger Mode: auto, normal, single

Line/Field Frequency (video): supported standards: NTSC, PAL and SECAM broadcast systems

Function Generator Part

Standard Waveforms: sine, square, ramp, and pulse

Frequency Output: 5 MHz

Sampling Rate: 25 MSa/s

Channel Q'nty: 1

Vertical Resolution: 10 bits

Amplitude Range: 10 mVpp – 5 Vpp

DC Offset Range: (AC+DC) ± 2.5V

Output Impedance: 50 Ω (typical)

General Part

Communication Interface: USB device (type-C), USB host (Wi-Fi extension supported), LAN

Wi-Fi Module: available in option

Power Source: 5 - 15 VDC / 1.2A

Power Consumption: ≤ 8 W

Device Dimension: w/h/d 190 x 120 x 18 mm

Weight: 0.38 kg
