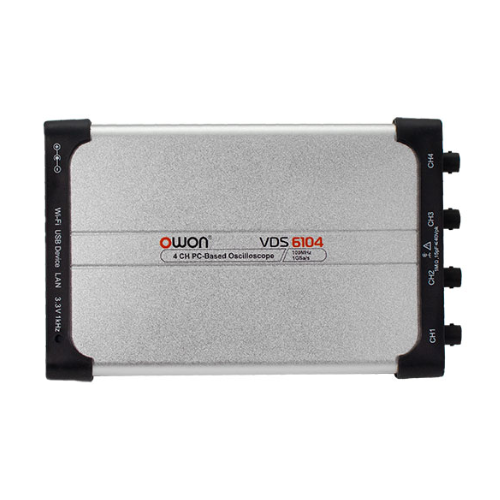

OWON VDS6104A PC Oscilloscope (100MHz; 1GS/s; 8 bits / 12 bits / 14 bits)

Bandwidth:  8-bit mode: 100 MHz

                    12-bit mode: 100 MHz

                    14-bit mode: 20 MHz

Channel: 4 channels

Sample Rate:

 4-CH working: 8-bit mode 250MSa/s

                       12-bit mode 125MSa/s

                       14-bit mode 125MSa/s

2-CH working: 8-bit mode 500MSa/s

                        12-bit mode 250MSa/s

                        14-bit mode 125MSa/s

1-CH working: 8-bit mode 1GSa/s

                        12-bit mode 500MSa/s

                        14-bit mode 125MSa/s

Horizontal Scale (s/div): div～100s/div, step by 1～2～5

Sampling mode: General sampling, peak detection, average

Record Length: 10M

Input Coupling: DC, AC, GND

Input Impedance: 1MΩ±2%， in parallel with15pF±5pF

Vertical Sensitivity: 2mV/div～5V/div

Vertical Resolution (A/D): 8 bits/ 12 bits / 14 bits

Max Input Voltage: 40V Peak value（DC + AC Peak value）

Bandwidth limitation: 20 MHz， full bandwidth

Probe Attenuation Factor: 1X，10X，100X，1000X

Trigger Type: Edge, Pulse, Video, Slope,

Trigger Mode: Auto, Normal, and Single

Communication Interface: USB Device (Typ-c)；USB Host ; LAN, Wifi(optional)

Power Source: 5 - 15VDC / 1.2A

Power Consumption: ≤ 8W

Dimensions (W × H × D): 190mm × 120mm × 18mm

Device Weight: 0.38 kg
