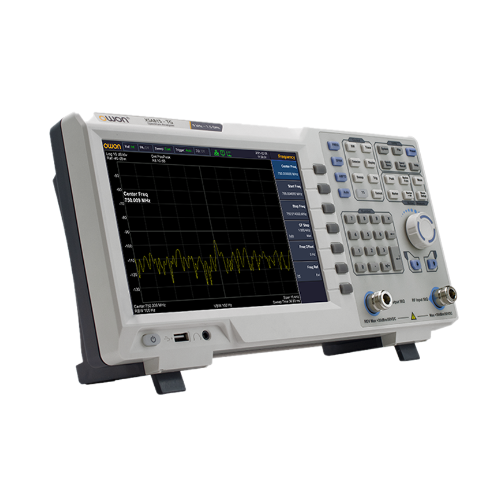

OWON XSA815-TG Spectrum Analyzer (9kHz ~ 1.5 GHz)

Frequency Range: 9kHz ~ 1.5 GHz

Frequency Resolution: 1Hz

Reference frequency aging rate: < 1 ppm/year

Span range: 0 Hz，100 Hz to maximum frequency of instrument

Bandwidth

             Resolution bandwidth (-3 dB): 1 Hz to 1 MHz, in 1-3-5-10 sequence

             Resolution Bandwidth (-6 dB) (EMI): 200 Hz, 9 kHz, 120 kHz, 1 MHz

             RBW Accuracy: < 5% typical

             Resolution Filter Shape Factor (60 dB : 3 dB): < 5 typical

             Video Bandwidth (-3 dB): 10 Hz to 1 MHz, in 1-3-5-10 sequence

Amplitude and level

             Amplitude measurement range: DANL to +10 dBm, 100 kHz to 10 MHz, Preamp Off

                                                                DANL to +20 dBm, fc ≥ 10 MHz, Preamp Off

             Reference Level: -80 dBm to +30 dBm, 0.01 dB by step

             Preamp: 20 dB, nominal, 100 kHz to 1.5 GHz

             Input Attenuator: 0 to 40 dB, 1 dB by step

Tracking Generator (optional)

             Frequency Range: 100 kHz to 1.5 GHz

            Output power level range: -40 dBm to 0 dBm

            Output level resolution: 1 dB

            Output flatness: Relative to 50 MHz / ± 3 dB

Interface: USB Host, USB Device, LAN, earphone interface, HDMI

Display: 9-inch TFT LCD, 1280 x 800 pixels

Dimensions: 375 mm (W) × 185 mm (H) × 120 mm (D)

Weight: Approx. 3.7 kg (main device)
