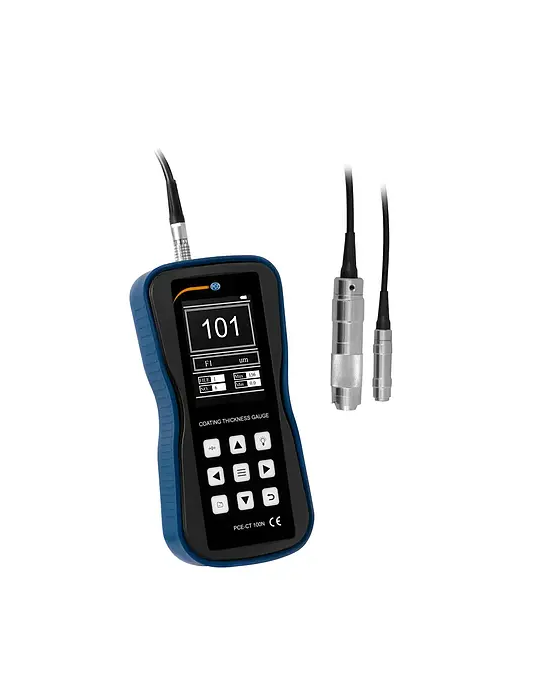

PCE CT 100N Coating Thickness Gauge (0 ~1250 µm; 0~49.2 mil)

Measuring range: 0 ... 1250 µm; 0 ... 49.2 mil

Min. coating thickness of base material: 50 µm

Smallest measuring surface (diameter): 10 mm

Min. radius of curvature convex: 15 mm

Min. radius of curvature concave: 15 mm

Accuracy: ± (1% + 1 µm); ± (1% + 0.04 mil)

Resolution:

0.1µm (<99.9 µm); 0.004 mil (<3.9 mil)

1 µm (> 100 µm); 0.04 mil (> 3.9 mil)

Calibration: Single point, multiple point

Data storage:1260 data

Measuring modes: Single measurements, continuous measurement

Interfaces: Wifi , USB

Operating conditions: 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH non-condensing

Dimensions: 170 x 85 x 35 mm / 6.7 x 3.3 x 1.4 in

Weight: Approx. 335 g / < 1 lb (with battery)

Delivery Scope:

1 x Coating thickness gauge PCE-CT 100N

1 x NFe probe

1 x Fe probe

1 x USB data carrier

1 x Reference film set

1 x Calibration plate (ferrous)

1 x Calibration plate (non-ferrous)

2 x 1.5V AA batteries

1 x Instruction manual
