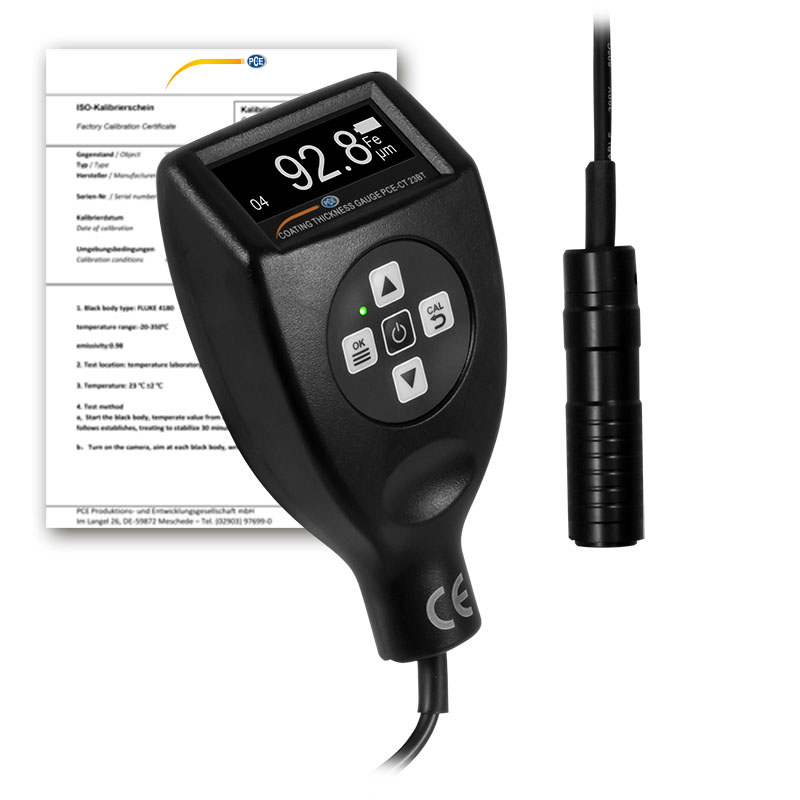

PCE CT 23BT-ICA Coating Thickness Meter (0… 1500 µm, ISO Calibration Certificate)

Measurable substrates: Fe, NFe

Probe: external

Measuring range: 0… 1500 µm

Resolution:

0.1 µm (in the measuring range 0… 99.9 µm)

1 µm (in the measuring range 100… 1500 µm)

Accuracy: ± (1 µm + 2% of the layer thickness)

Units: µm, mil

Smallest curvature: convex 5 mm, concave 5 mm

Smallest measuring area: 10 x 10 mm

Minimum thickness of the substrate: 0.4 mm

Interface: Bluetooth, micro USB

Memory: 10 groups with 60 measurements each

Power supply: 2 x 1.5 V AA batteries, 5 V USB interface

Environmental conditions: -10… 50 °C, 10… 85% RH

Dimensions: 126 x 69 x 35 mm (without sensor)

Weight: approx. 97 g (without batteries)

Delivery Scope:

1 x PCE-CT 23BT-ICA Coating Thickness Meter

5 x Calibration foil reference

1 x Fe zero standard

1 x NFe zero standard

1 x Wrist strap

2 x 1.5 V AA batteries

1 x Carrying case

1 x Instruction manual

1 x ISO Calibration Certificate
