Measuring range: 5 ... 500 N / 1.1 ... 112 lbs
Resolution: 0.1 N / 0.02 lbs
Pressure calibration: 1 Mpa
Load cell: Integrated load cell with M6 connection
Measuring range: 1 ... 100% of the full scale
Measurement accuracy: ± 0.5 %
Units: N, kg, lb
Display: LCD
Power supply: Internal battery, 12V / 1 A power adapter
Operating temperature: 10 ... 30 °C / 50 ... 86°F
Relative humidity: 15 ... 80 % relative humidity
Weight: 1 kg / 2.2 lbs
Working conditions: The device must not be near sources of vibration or corrosive substances.
Delivery Scope:

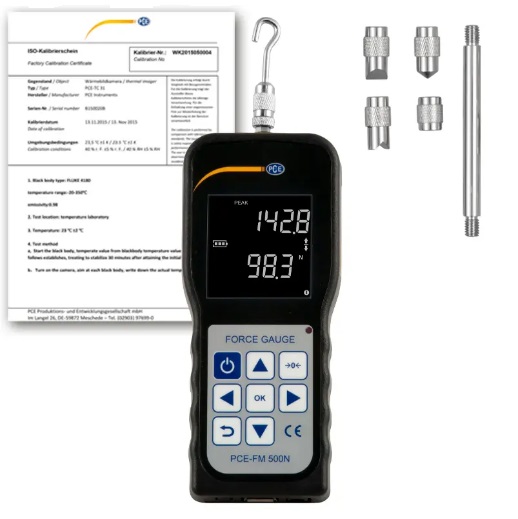

1 x Force Gauge PCE-FM 500N
1 x Downloadable evaluation software
1 x USB cable
1 x Flat head adapter
1 x Hook adapter
1 x Ball head adapter
1 x Chisel head adapter
1 x Notched head adapter
1 x Adapter for extension rod
1 x Extension bar (65 mm / 26 in)
1 x Charging adapter
1 x Device case
1 x User manual
1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
