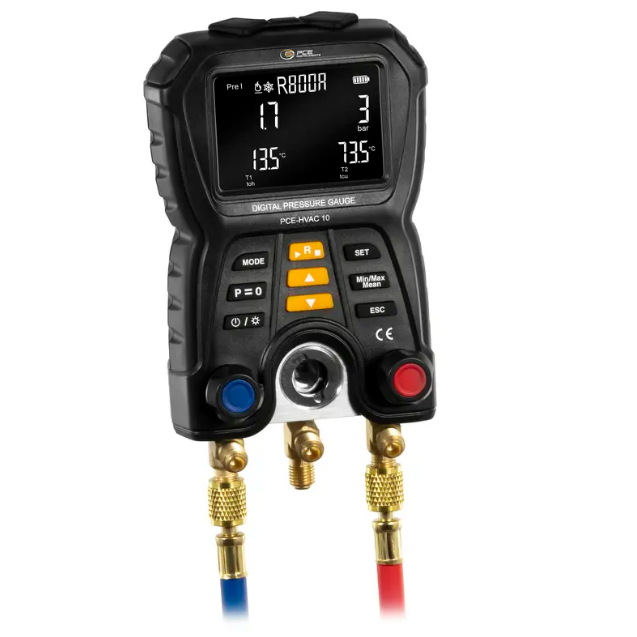

PCE PCE-HVAC 10 Manometer (-1 bar~+60 bar; 0.01 bar)

- Temperature NTC:

Measurement Range:  -10°C ... +200°C

Resolution: 0.1°C

Accuracy: ±(1°C + 1 Digit)

- Pressure:

Measurement Range: -1 bar ... +60 bar

Resolution: 0.01 bar

Accuracy: ±0.5% FS (Full Scale)

- General Technical Data:

Units: MPa, kPa, psi, bar, °F, °C

Connection Type: 3 x 7/16" – UNF

Display Type: LCD

Automatic Shutdown: 30 min.

Measuring Medium: Refrigerant (see manual)

Battery Type: AA Battery (1.5V)

Menu Language: English

Protection Class: IP42

Weight : 768 g

Device Weight with Accessories: 2185 g

Device Weight with Accessories and Packaging: 2271 g

Dimensions: 204 x 116 x 65 mm (L x W x H)

Dimensions Including Packaging: 345 x 275 x 105 mm (L x W x H)

Additional Dimensions:

Refrigerant Hose Length: 0.8 m

Temperature Sensor Length: 0.8 m

Operating Conditions: 0°C ... +45°C, +10% ... 95% r.F. (Relative Humidity)

Storage Conditions: -20°C ... +60°C, +10% ... 95% r.F. (Relative Humidity)

- Delivery Scope:

1 x Manometer PCE-HVAC 10

3 x Refrigerant Hoses (Red, Blue, Yellow)

2 x Clamp-On NTC Temperature Sensors

4 x 1.5V AA Batteries

1 x Carrying Case

1 x User Manual
