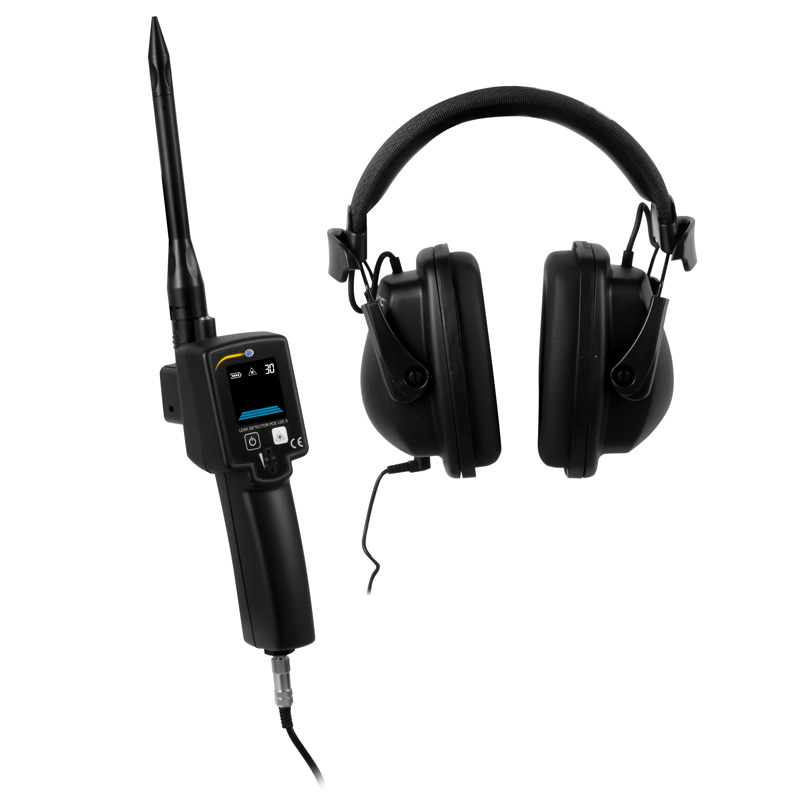

PCE LDC 8 Leak Detector (40 kHz ± 2 kHz)

Measuring principle: Ultrasonic

Measuring medium: Air, coolant, non-explosive gases

Operating frequency: 40 kHz ± 2 kHz

Connections:

3.5 mm jack plug for sensor

3.5 mm jack plug for headphones and charger

Display: LC display

Power supply: NiMH battery

Operating time:

approx. 6 h without laser pointer

approx. 4 h with laser pointer

Charging time: about 1.5 h

Operating temperature:

Normal operation: 0 ... 40 ° C

Charging mode: 10 ... 40 ° C

Laser: 2nd grade; <1mW; 650 nm

Dimensions: 7.54 x 3.44 x 2.09 in; 191.5 x 87.5 x 53 mm

Weight: approx. 250 g

Measurement options pressure vs. Diameter / range

Print DiameterRange

0.5 bar0.1 mm6.6 ft, 2 m

0.2 mm6.6 ft, 2 m

0.5 mm32.8 ft, 10 m

Print DiameterRange

5 bar0.1 mm26.2 ft, 8 m

0.2 mm45.9 ft, 14 m

0.5 mm59.1 ft, 18 m

Delivery Scope:

1 x Leak Detector PCE-LDC 8

1 x sensor unit

1 x headphones

1 x focus tube incl. focus tip

1 x sensor extension cable

1 x charger

1 x carrying case

1 x instruction manual
