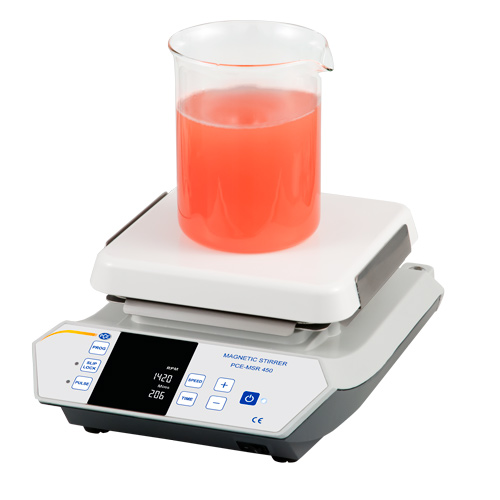

PCE MSR 450 Magnetic Stirrer (200~2200 rpm)

Motor: brushless DC motor (BLDC)

Number of stirring points: 1

Maximum stirring volume: 20 l

Stirring direction: clockwise / pulse mode: alternating (clockwise / counterclockwise)

Speed range: 200 ... 2200 rpm (adjustable in steps of 10 rpm)

Accuracy: +/- 1 rpm

Stirring bar min. / max. length: 24 / 60 mm (0.94 / 2.36")

Stirring bar recommended length: 25 mm (0.98")

Stirring plate material : Ceramic

Timer range (stirring time): 1 ... 99 min, infinite

Protection: IP 21

Environmental conditions: +5 ... +40 °C (+41 ... +104 °F), 80 % r.H.

Operating voltage: 230 V AC

Power consumption: 35 W

Dimensions of stirring plate: 180 x 180 mm (7.08 x 7.08")

Dimensions (L x W x H): 225 x 330 x 113 mm (8.85 x 12.99 x 4.44")

Weight: 4.5 kg (9 lb 14.7 oz)

Delivery Scope:

1 x Magnetic Stirrer PCE-MSR 450

1 x Stir bar

1 x Power cable

1 x User manual
