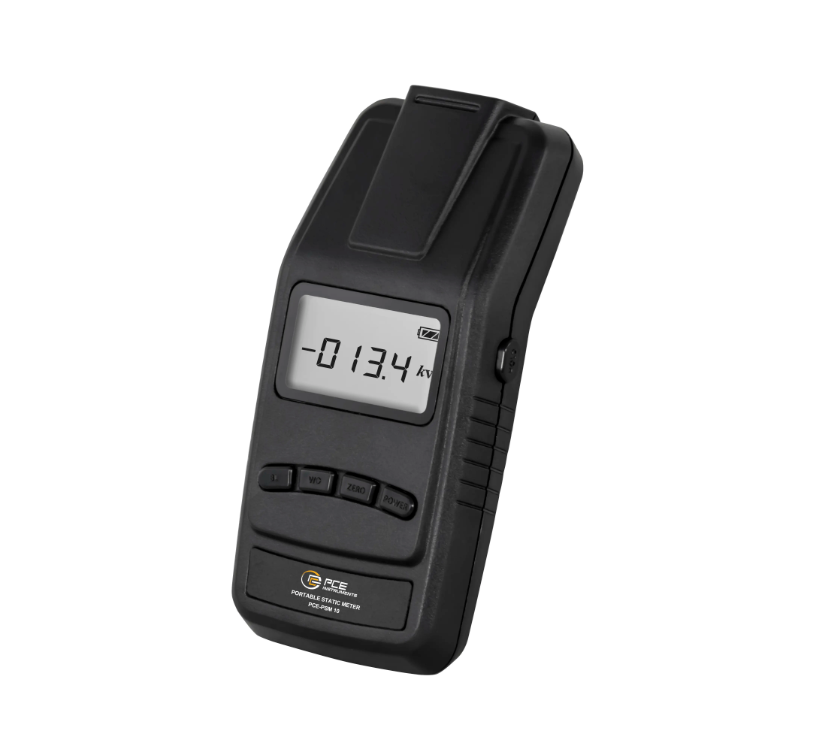

PCE PCE-PSM 10 Health & Safety electrostatic voltage detector (0.1 ... 200 kV DC)

Radiation

Measurement range up to: 0.1 ... 200 kV DC

Resolution: 0.1 kV DC

Accuracy: ±10 %

General technical data

Measuring functions: HOLD

Display type: LCD with backlight

Display size: 2 Inch

Current consumption meter: 100 mA DC

Automatic power-off: 5 min

Working distance: 25 mm ±1.0 mm

Protection class (device): IP20

(Rechargeable) battery: 2 x 1.5 V AAA battery , Alkali-manganese

Capacity: 1200 mAh

Operating conditions: -18 ... 50 °C , 0 ... 85 % RH

Storage conditions: -18 ... 50 °C , 0 ... 85 % RH

Dimensions ( L x W x H ): 140 x 75 x 35 mm

Weight: 122 g

Delivery Scope

1 x Health & Safety PCE-PSM 10

2 x 1.5 V AAA battery

Datasheet
