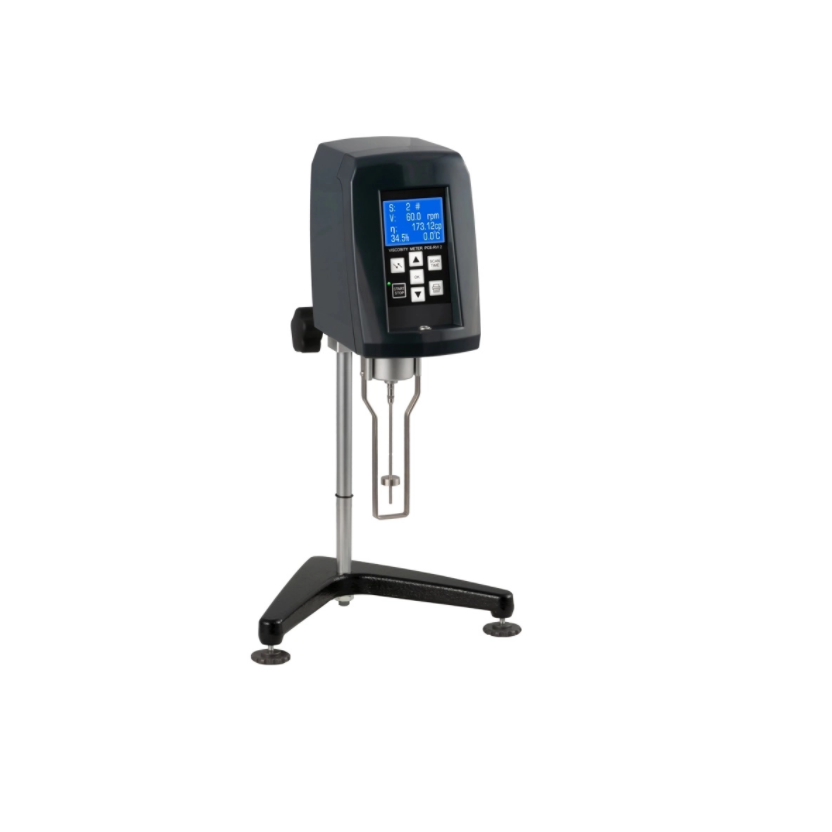

PCE RVI 2 Viscometer (1~100,000 cP)

Measuring range: 1 ... 100,000 cP

Accuracy: <±2 % of measuring range

Resolution: 0.01 cP

Repeatability: ±0.5 %

Temperature sensor: resistance temperature sensor

Temperature measurement measuring range : 0 ... 100 °C / 32 ... 212 °F

Temperature measurement accuracy: 0.1 °C

Adjustable measuring time: 30 seconds ... 1 hour or endless

Resolution of the measurement time: 30 seconds

Adjustable speed: 6, 12, 30, 60 RPM

Sample volume: 250 ... 400 ml / 8.4 ... 13.5 fl oz (depending on the spindle)

Spindle: L1 ... L4

Interface: RS232 (SUB D9)

Height adjustability: 25 cm / 9.8"

Power supply

primary: 100 ... 240 V AC , 50 / 60 Hz

secondary 12 V DC, 2 A

Ambient conditions: 5 ... 35 °C / 41 ... 95 °F, <80 RH, non-condensing

Dimensions: 400 x 200 x 430 mm / 15.7 x 7.8 x 16.9"

Weight: 4.8 kg / 10.5 lb

Delivery

1 x Viscometer PCE-RVI 2

1 x Spindle set consisting of spindle L1 ... L4

1 x Transport case

1 x Double open-end wrench

1 x Mains power adapter

1 x Instruction manual
