Measuring range: 1.20 ... 300.0 mm / 0.04 ... 11.81"
Resolution:
0.01 mm at ≤99.99 mm
0.1 mm at ≥100.0 mm
Accuracy: ±0.5 % of measured value + 0.05 mm
Storage space: 1500 measured values
Standard sensor: PCE-TG HT
Temperature range sensor: -10 ... 350 °C / 14 ... 662 °F
Probe frequency: 5 MHz
Diameter: Ø12mm
Further specifications
Adjustable speed of sound: 1000 ... 9999 m/s
Smallest pipe diameter: Ø20 x 3 mm (steel)
Material library: 15 memory locations
Calibration reference: 4 mm
Display: 2.4 inch TFT LCD color display with brightness adjustment
Power supply: 3 x 1.5 V AA batteries
Automatic switch-off: switched off, 2, 5, 10, 30 minutes
Ambient conditions: 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing
Dimensions: 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5"
Weight: 320 g / 11.2 oz
Delivery Scope:

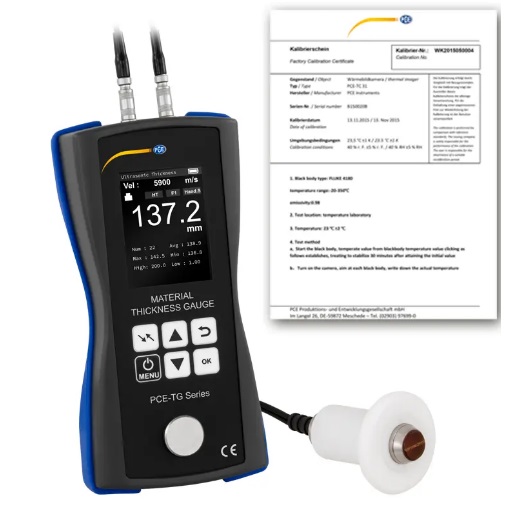

1 x Thickness Meter PCE-TG 150 HT
1 x Sensor PCE-TG HT
1 x Coupling gel (K-GEL)
1 x Transport bag
3 x 1.5 V AA batteries
1 x Quick start guide
1 x ISO Calibration Certificate
N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
