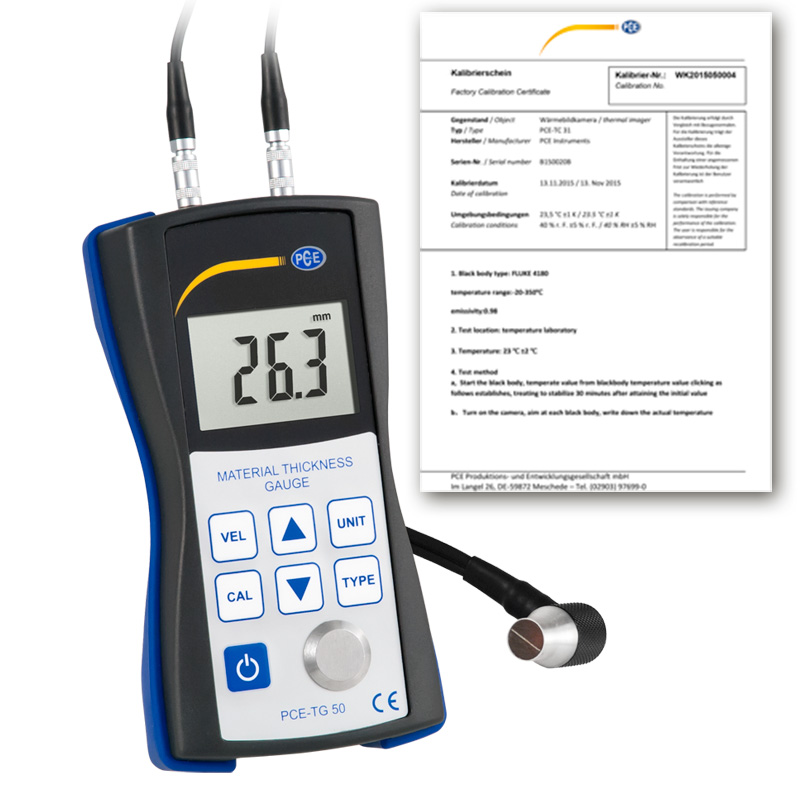

PCE TG 50-ICA Ultrasonic Thickness Meter (1.2~200 mm; 0.1 mm; ISO Calibration Cert.)

Measurement range: 1.2 ... 200 mm / 0.05 ... 7.87 in (steel)

Accuracy: ± 0.5% of rdg. ± 0.1 mm / ± 0.00393701 in

Transducer: 5 MHz frequency, 8 mm / 0.32 inch diameter; Probe support surface: 10.2 mm / 0.4 in diameter; Head: 15.4 mm diameter / 0.61 in

Resolution: 0.1 mm / 0.001 in

Ultrasound velocity: 800 ... 9950 m/s / 2624.67 ... 32644.36 ft/s (adjustable)

Display: 4-digit LCD

Operating conditions: -10 ... 50°C / 14 ... 122°F; Relative humidity: < 80% RH

Calibration block: 5.0 mm / 0.2 in steel (integrated)

Measuring units: mm or in (adjustable)

Material temperature: 0 ... 50°C / 32 ... 122°F (permanent); 50 ... 85°C / 122 ... 185°F (for 5 minutes, then 30 minutes cooling below 50° C / 122°F)

Data interface: RS-232 port

Power supply: 3 x 1.5V AAA batteries (approx. 250 hours of battery life)

Dimensions: Approx. 142 x 77 x 40 mm / 5.6 x 3.1 x 1.6 inches (handset)

Weight: Approx. 265 g / < 1 lb (handset with batteries and probe)

Delivery Scope:

1 x PCE-TG 50-ICA ultrasonic thickness meter

1 x Ultrasonic contact transducer sensor probe

1 x Container of coupling gel

3 x 1.5V AAA batteries

1 x User manual

1 x Carrying case

1 x ISO calibration certificate
