PCE TM 80 Digital Torque Meter

ManufacturerPCE

ModelTM 80

P/NPCE-TM 80

USD 1,184.07

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Measurement range	147,1 Ncm / 13,02 lbfin / 15 kgfcm
Resolution - High resolution - Low resolution	0,1 Ncm / 0,01 lbfin / 0,01 kgfcm 1 Ncm / 0,1 lbfin / 0,1 kgfcm
Accuracy	±1,5 % + 5 digits
Peak-Hold function	yes
Additional functions	Data-Hold / máx. y mín. / Peack-Hold
Units	Ncm, kgfcm, lbfin
Overload protection	máx. 150 %
Output	RS-232
Software	option
Display	LCD
Operating temperature	0 ... +50 ºC, below 80 % H.r
Power supply	9 V battery
Weight - Main unit - External sensor	approx. 225 g approx. 665 g
Dimensions - Main unit - External sensor	180 x 72 x 32 mm Ø 48 x 160 mm

Delivery
1 x Digital Torque Meter PCE-TM 80,
1 x external sensor,
1 x chuck ley,
1 x plastic carrying case,
user’s manual

Digital Torque Meter PCE-TM 80 meter to determine the “torque moment” up to 147 Ncm / PC interface and software (option) / Peak-Hold function / external torque sensor / selection of diverse units / selection of the resolution

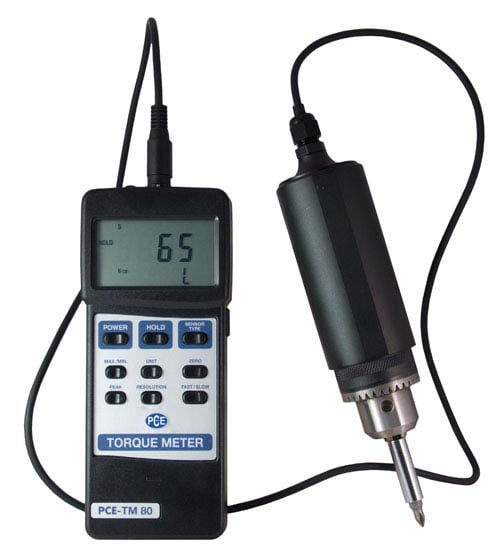

The Digital Torque Meter PCE-TM 80 with external sensor to measure the torque moment in screws, components, switches, transmission shafts, etc. The Digital Torque Meter PCE-TM 80 is an affordable solution to perform easily torque measurements. The Digital Torque Meter PCE-TM 80 operates by rotatory movements to the left and right and it is ideal for the torque moment. The Digital Torque Meter PCE-TM 80 offers the possibility (according to the application) to enlarge 1 digit resolution. The Digital Torque Meter PCE-TM 80 shows the Peak value as well as the max. and min. values. By means of the optional software real-time data can be continuously transferred to a PC or portable computer. The Digital Torque Meter PCE-TM 80 is very solid to ensure both long duration and reliability.

- Range 0 ... 147 Ncm - Selection of 3 units (Ncm, kgfcm, lbfin) - Digital output RS-232 - External torque sensor - Optional software - Selection of the resolution	- Automatic shut-off - Peak-Hold function - ISO Calibration certificate (option) View / print user’s manual of the Digital Torque Meter PCE-TM 80
The Digital Torque Meter PCE-TM 80 measuring the torque moment in a grinder	Current values can be directly read in the display of the Digital Torque Meter PCE-TM 80
Technical peScifications
Measurement range	147,1 Ncm / 13,02 lbfin / 15 kgfcm
Resolution - High resolution - Low resolution	0,1 Ncm / 0,01 lbfin / 0,01 kgfcm 1 Ncm / 0,1 lbfin / 0,1 kgfcm
Accuracy	±1,5 % + 5 digits
Peak-Hold function	yes
Additional functions	Data-Hold / máx. y mín. / Peack-Hold
Units	Ncm, kgfcm, lbfin
Overload protection	máx. 150 %
Output	RS-232
Software	option
Display	LCD
Operating temperature	0 ... +50 ºC, below 80 % H.r
Power supply	9 V battery
Weight - Main unit - External sensor	approx. 225 g approx. 665 g
Dimensions - Main unit - External sensor	180 x 72 x 32 mm Ø 48 x 160 mm

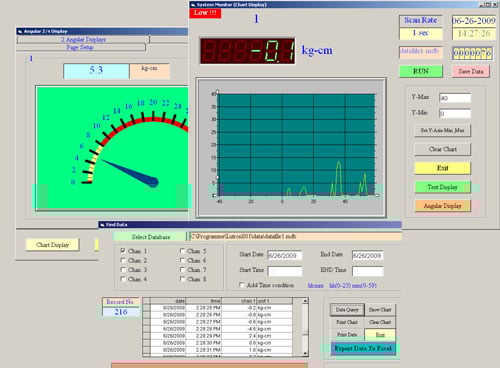

Here you can see a section of the optional software for the Digital Torque Meter PCE-TM 80 (selection of diverse settings for its valuation)
Delivery contents
1 x Digital Torque Meter PCE-TM 80, 1 x external sensor, 1 x chuck ley, 1 x plastic carrying case, user’s manual
