Diameter: Ø6 mm / 0.23"
Cable length: 5 m / 16.4 ft
Camera direction: 0°
Resolution: 1 MP
Focusing range: 10 ... 100 mm / 0.39 … 3.9"
Further specifications:
Material camera head: titanium alloy
Material camera hose: braided tungsten
Material camera lens: glass
Field of view: 120°
Illuminance: 50,000 lux
Bending direction: 360° (4-way camera head)
Bending angle: 190°
Display: 7" LCD touchscreen
Display resolution: 1920 x 1200 pixels
Image format: JPG
Video format: MP4
Image resolution: 1280 x 720 pixels
Video resolution: 1280 x 720 pixels
Digital magnification: 8 times
Memory (internal): 16 GB
Memory (external): expandable up to 128 GB for ca. 285,000 pictures or 1500 minutes of video recording
Interface: Mini HDMI, USB-A, USB-C (only for data transfer), audio interface, WiFi
Power consumption (endoscope): 10 W
Operating time: >3 hours
Battery: 7.4 V (4 x 18650), 6400 mAh, removable
Battery (charging): 12 VDC, 3 A
Mains adapter
primary: 100 … 240 VAC 50/60 Hz, 1.5 A
secondary: USB-C (PD) 65 W maximum
5 VDC, 3 A
9 VDC, 3 A
12 VDC, 3 A
15 VDC, 3 A
20 VDC, 3.25 A
PPS1: 3.6 … 11 VDC, 3 A
PPS2: 3.6 … 20 VDC, 3 A
Operating conditions (hand-held device): 5 ... 50 °C / 41 ... 122 °F, <92 % RH, non-condensing
Operating conditions (endoscope cable): 5 ... 80 °C / 41 ... 176 °F, <92 % RH, non-condensing
Storage conditions: 5 ... 63 °C / 41 ... 145 °F, <92 % RH, non-condensing
Dimensions: 366 x 194 x 137 mm / 14.4 x 7.6 x 5.3"
Weight:
handset weight: 1017 g / 35.8 oz
endoscope cable with electric motor: ca. 600 g / 21.1 oz
battery 550 g / 19.4 oz
Delivery Scope:

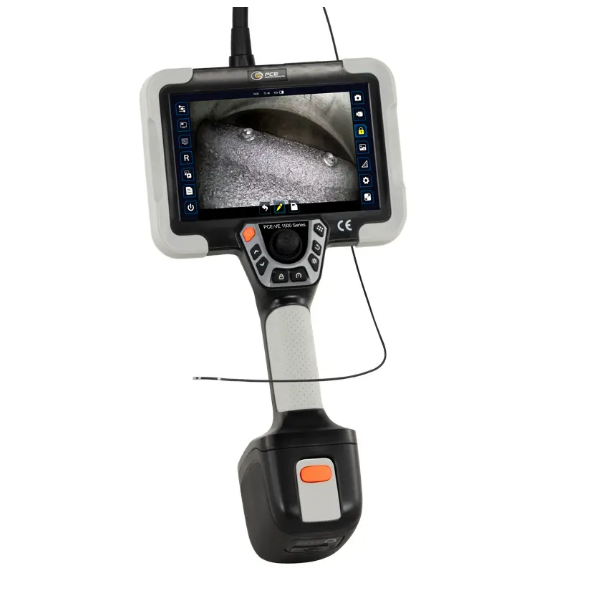

1 x Industrial borescope PCE-VE 1500-60500
2 x 7.4V 6400mAh battery
1 x 64GB memory card
1 x USB-C cable
1 x HDMI to Mini HDMI cable
1 x SD card reader
1 x Carrying case
1 x Instruction manual
